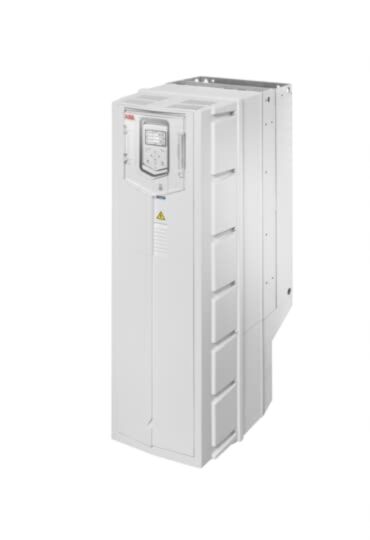

ACH580-01-363A-4+B056 ABB 200kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACS580-01-430A-4+B056 General Purpose Drive?

The ABB ACS580-01-430A-4+B056 (Product ID 3AUA0000083609) is a powerful AC variable frequency drive (VFD) designed for precise speed control of large three-phase motors in demanding industrial applications. Part of the proven ABB ACS580 general purpose drive family, it provides efficient motor control, simplified commissioning and dependable operation for industrial machinery and automation systems.

The ACS580 drive platform integrates essential functionality directly into the unit, reducing installation complexity and eliminating the need for additional hardware. Its intuitive control interface, configuration assistants and integrated application features allow engineers to install and commission drives quickly while maintaining consistent and reliable performance across a wide range of industries. :contentReference[oaicite:0]{index=0}

With a rated output power of 250 kW and a nominal output current of 430 A, the ACS580-01-430A-4+B056 operates from a three-phase 380–480 V AC supply. The robust wall-mounted design ensures reliable motor control for heavy industrial equipment such as pumps, conveyors, compressors and process machinery. :contentReference[oaicite:1]{index=1}

Key Advantages

• High-power general purpose variable frequency drive for industrial motor control.
• 250 kW motor power rating suitable for large industrial equipment.
• 430 A nominal output current for demanding motor loads.
• Three-phase 380–480 V AC supply compatible with standard industrial power systems.
• Integrated functionality simplifies installation and commissioning.
• Wall-mounted enclosure designed for industrial control cabinets.

Key Features

• ABB ACS580 general purpose drive platform.
• 250 kW rated output power.
• 430 A nominal output current.
• 380–480 V AC three-phase input voltage.
• Integrated EMC filtering and harmonic mitigation.
• Built-in Safe Torque Off (STO) safety function.
• Assistant control panel with configuration tools.
• Support for industrial communication networks including Modbus, EtherNet/IP, PROFINET and PROFIBUS.

Technical Specifications

• Manufacturer: ABB
• Series: ACS580 General Purpose Drives
• Model: ACS580-01-430A-4+B056
• Product ID: 3AUA0000083609
• Product type: AC variable frequency drive
• Rated output power: 250 kW
• Rated output current: 430 A
• Input voltage: 380–480 V AC
• Input phases: Three phase
• Frame size: R9
• Protection rating: IP21
• Mounting type: Wall mounted
• Dimensions (H × W × D): approx. 955 × 380 × 418 mm
• Weight: approx. 97 kg

Efficient Motor Control for Industrial Systems

Variable frequency drives regulate motor speed by adjusting the voltage and frequency supplied to the motor. This allows machinery to operate more efficiently, improving process control while reducing mechanical stress and energy consumption.

ACS580 drives are widely used to control equipment such as pumps, compressors, conveyors, extruders, centrifuges and fans across industries including food and beverage processing, plastics manufacturing, textiles, agriculture and material handling. :contentReference[oaicite:2]{index=2}

Typical Applications

• Large industrial pumps and compressors.
• Material handling conveyors and production lines.
• Industrial fans and ventilation systems.
• Extruders and processing equipment.
• Manufacturing and process automation systems.
• Infrastructure and utility installations.

Trusted by Industrial Engineers Worldwide

ABB ACS580 drives are widely trusted by engineers and system integrators for reliable motor control, simplified commissioning and efficient performance across industrial processes.
