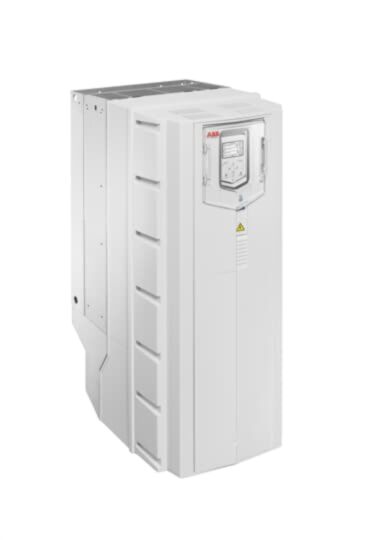

ACH580-01-293A-4+B056 ABB 160kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACH580-01-293A-4+B056 HVAC Drive?

The ABB ACH580-01-293A-4+B056 (Product ID 3AUA0000083608) is a high-performance AC variable frequency drive (VFD) engineered specifically for heating, ventilation and air conditioning (HVAC) systems. As part of the advanced ABB ACH580 HVAC drive series, it provides reliable and energy-efficient motor control for large fans, pumps, compressors and air-handling units used in commercial and industrial buildings.

The ACH580 range is designed to simplify HVAC system operation by integrating dedicated application features directly within the drive. Built-in HVAC functionality reduces commissioning time while enabling stable and efficient control of ventilation, cooling and fluid circulation systems. These drives are widely used in building automation environments where reliability and energy optimisation are essential.

With a rated output power of up to 160 kW and a nominal output current of approximately 293 A, the ACH580-01-293A-4+B056 operates from a three-phase 380–480 V AC supply. The drive features a durable IP55 wall-mounted enclosure, making it suitable for installation in plant rooms or industrial environments where enhanced protection against dust and moisture is required. :contentReference[oaicite:0]{index=0}

Key Advantages

• Purpose-built HVAC variable frequency drive for building automation systems.
• 160 kW motor power capability suitable for large fans and pumps.
• Three-phase 380–480 V AC input compatible with commercial and industrial power systems.
• Integrated HVAC control logic simplifies system configuration.
• Energy-efficient operation reduces building energy consumption.
• Robust IP55 enclosure for reliable operation in plant rooms and technical spaces.

Key Features

• ABB ACH580 HVAC drive platform.
• 160 kW rated output power.
• 293 A nominal output current.
• Three-phase 380–480 V AC input supply.
• Integrated HVAC application functions for pumps and fans.
• Assistant control panel for configuration and diagnostics.
• Built-in communication support for building automation networks.
• IP55 wall-mounted enclosure for industrial and commercial environments.

Technical Specifications

• Manufacturer: ABB
• Series: ACH580 HVAC Drives
• Model: ACH580-01-293A-4+B056
• Product ID: 3AUA0000083608
• Product type: AC variable frequency drive
• Rated output power: 160 kW
• Rated output current: 293 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Frequency: 47.5–63 Hz
• Protection rating: IP55
• Mounting type: Wall mounted
• Frame size: R8

Efficient Motor Control for HVAC Systems

Variable frequency drives control motor speed by adjusting the voltage and frequency supplied to the motor. In HVAC applications this allows pumps and fans to run only at the speed required to meet system demand, reducing energy consumption while improving temperature and airflow stability.

The ACH580 series includes built-in HVAC-specific features for fan control, pump regulation and advanced system monitoring. These integrated functions simplify system design while ensuring efficient and reliable operation in building automation systems and critical climate control environments. :contentReference[oaicite:1]{index=1}

Typical Applications

• Large HVAC fan and ventilation systems.
• Chilled water and circulation pumps.
• Cooling tower fans.
• Air-handling units (AHUs).
• Commercial building automation systems.
• Industrial facility climate control.

Trusted by Building Automation Engineers

ABB ACH580 HVAC drives are trusted worldwide by building automation engineers and facility managers to deliver reliable motor control, energy efficiency and stable climate control performance in commercial and industrial buildings.
