ACH580-01-169A-4+B056 ABB 90kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACS580-01-206A-4+B056 General Purpose Drive?

The ABB 3AUA0000083605 is a powerful ACS580-01 general purpose variable frequency drive engineered for reliable and efficient motor control across demanding industrial environments. Rated for approximately 110 kW motor power with a nominal output current of about 206 A, the drive operates from a 380–480 V three-phase supply, enabling precise speed and torque regulation for pumps, fans, conveyors and heavy-duty machinery.

Part of ABB’s trusted ACS580 all-compatible drive platform, this drive integrates application macros, commissioning assistants and intuitive configuration tools to simplify installation and operation. These built-in capabilities allow engineers to deploy the drive quickly while ensuring dependable performance and improved energy efficiency.

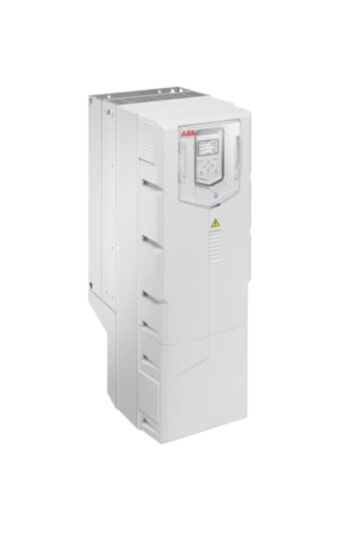

The ACS580-01-206A-4+B056 variant is supplied in a rugged IP55 wall-mounted enclosure, providing enhanced protection against dust and moisture. This makes the drive suitable for installation in harsher industrial environments while maintaining stable and efficient motor control.

Key Advantages

• High-performance general purpose AC variable frequency drive.
• Supports motors up to approximately 110 kW.
• Designed for 380–480 V three-phase industrial power systems.
• Integrated assistants simplify commissioning and configuration.
• IP55 enclosure provides improved environmental protection.
• Part of ABB’s reliable ACS580 drive platform.

Key Features

• ABB ACS580 general purpose AC drive.
• 110 kW rated motor power.
• 206 A nominal output current.
• 380–480 V AC three-phase supply.
• Rugged IP55 wall-mounted enclosure.
• Integrated commissioning assistants and application macros.
• Flexible communication options for industrial automation systems.
• Designed for reliable operation in demanding environments.

Technical Specifications

• Manufacturer: ABB
• Product ID: 3AUA0000083605
• Model: ACS580-01-206A-4+B056
• Drive type: General purpose AC variable frequency drive
• Rated motor power: approx. 110 kW
• Nominal output current: approx. 206 A
• Input voltage: 380–480 V AC
• Input phases: Three-phase
• Mounting type: Wall mounted
• Protection rating: IP55
• Frame size: R8
• Frequency: 47.5–63 Hz
• Control interfaces: 2 analogue inputs, 2 analogue outputs, 6 digital inputs, 3 relay outputs
• Communication: Modbus RTU with optional fieldbus adapters
• Typical applications: Pumps, conveyors, compressors, mixers, extruders and heavy industrial machinery

Efficient Industrial Motor Control

Variable frequency drives allow precise control of motor speed while improving energy efficiency and reducing mechanical stress on equipment. The ABB ACS580 platform is designed to optimise industrial processes by adjusting motor output according to system demand.

With integrated functionality and flexible communication options, ACS580 drives integrate easily into modern automation systems while delivering dependable motor control across manufacturing plants, infrastructure installations and processing industries.

Typical Applications

• Industrial pump and fan systems.
• Conveyor and material handling equipment.
• Compressors and process machinery.
• Manufacturing automation systems.
• Water treatment and infrastructure installations.

Trusted by Industrial Engineers Worldwide

ABB ACS580 drives are widely trusted by engineers and system integrators for reliable motor control and energy-efficient operation across industrial automation systems.
