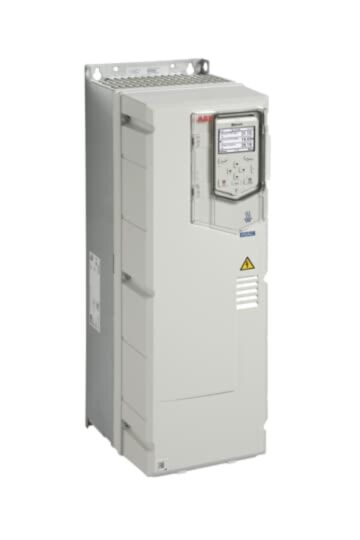

ACH580-01-073A-4+B056 ABB 37kW Three Phase ABB ACH580 Variable Speed Drive
MPN: ACH580-01-073A-4+B056
Alt. SKU: 3AUA0000083599
Special Price
£3,557.58
£2,964.65
Regular Price
£5,473.20
Why Choose the ABB ACH580-01-073A-4+B056 HVAC Drive?
The ABB 3AUA0000083599 corresponds to the ACH580-01-073A-4+B056 HVAC variable speed drive, part of ABB’s specialised ACH580 drive family designed specifically for heating, ventilation and air-conditioning systems. This drive provides reliable motor control and energy-efficient performance for pumps, fans, chillers and air-handling equipment in modern building automation environments.
Delivering approximately 37 kW rated motor power with a 73 A output current, the drive operates from a 380–480 V three-phase supply. The ACH580 series is engineered for HVAC systems in commercial and industrial buildings, enabling efficient control of ventilation systems, cooling towers and water circulation pumps.
The drive includes integrated HVAC control functions and commissioning assistants that simplify setup and reduce engineering effort. With its intuitive control panel and built-in application features, the ACH580 helps optimise system efficiency while ensuring reliable operation in demanding building services installations.
Key Advantages
- Dedicated 37 kW HVAC drive for building automation systems.
- 73 A continuous output current for reliable motor control.
- Designed for 380–480 V three-phase power systems.
- Integrated HVAC control functions simplify commissioning.
- Optimised for pumps, fans and air-handling equipment.
- Part of ABB’s specialised ACH580 HVAC drive platform.
Key Features
- ACH580 HVAC variable speed drive.
- 37 kW rated motor power.
- 73 A continuous output current.
- 380–480 V AC three-phase input supply.
- Wall-mounted drive enclosure.
- Integrated control panel with HVAC setup assistants.
- Communication support for common building automation protocols.
- Designed for fans, pumps, compressors and HVAC systems.
Technical Specifications
- Manufacturer: ABB
- Series: ACH580 HVAC Drives
- Model: ACH580-01-073A-4+B056
- Product ID: 3AUA0000083599
- Drive type: HVAC AC variable frequency drive
- Rated motor power (IEC): 37 kW
- Rated output current: 73 A
- Input voltage: 380–480 V AC
- Input phases: Three-phase
- Supply frequency: 50 / 60 Hz
- Protection class: IP55
- Mounting type: Wall mounted
- Typical applications: HVAC pumps, fans, air-handling units and chillers
Optimised Motor Control for HVAC Systems
Modern building automation systems require reliable motor control to regulate airflow, water circulation and temperature efficiently. The ABB ACH580 drive platform integrates HVAC-specific functionality to simplify system design while ensuring efficient operation of ventilation and pumping systems.
These drives are widely used in commercial buildings, hospitals, data centres and industrial facilities where dependable climate control and energy efficiency are essential.
Typical Applications
- Air-handling units and ventilation systems.
- Building water circulation pumps.
- Cooling towers and chillers.
- Commercial HVAC systems.
- Industrial building automation installations.
Frequently Asked Questions
What is the ABB 3AUA0000083599 used for?
This drive is designed specifically for HVAC systems to control fans, pumps, compressors and other building automation equipment.
What motor power does this drive support?
The drive supports motors up to approximately 37 kW with a rated output current of 73 A.
What voltage supply is required?
The ACH580-01-073A-4+B056 operates from a 380–480 V three-phase AC power supply.
Where is this drive typically installed?
It is commonly installed in HVAC control systems for commercial buildings, industrial facilities and large infrastructure installations.
Why choose an HVAC-specific drive?
HVAC drives include built-in control logic and automation features designed specifically for ventilation and pumping systems, simplifying installation and improving energy efficiency.
Trusted by Building Automation Engineers
ABB ACH580 drives are widely trusted by HVAC engineers to deliver reliable and energy-efficient motor control across modern building automation systems.
| Manufacturer Part Number | ACH580-01-073A-4+B056 |
|---|---|
| Barcode | 6438177306306 |
| Packed Quantity | 1 |
| Height | 636mm |
| Width | 203mm |
| Depth | 265mm |
| HS Code | 85044086 |
| Amperage | 73A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Panel Included | Yes |
| Control Setting | BACnet, CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, LON, Modbus, PROFIBUS, PROFINET IO, TCP/IP |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Degree of protection (IP) | IP55 |
| KW Rating | 37kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 2 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 500Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACH580 |
| With PC connection | Yes |
| Manufacturer | ABB |
| Country of Manufacture | Finland |
| Alternative Product SKU | 3AUA0000083599 |
