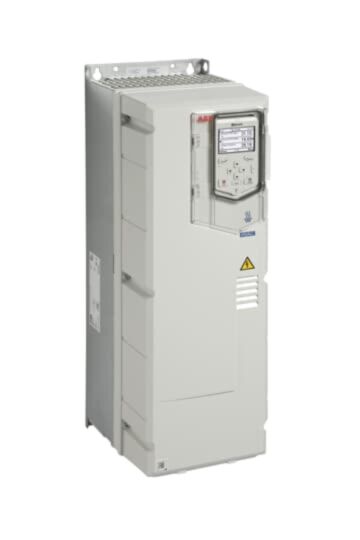

ACH580-01-062A-4+B056 ABB 30kW Three Phase ABB ACH580 Variable Speed Drive
MPN: ACH580-01-062A-4+B056
Alt. SKU: 3AUA0000083598
Special Price
£3,176.94
£2,647.45
Regular Price
£4,887.60
Why Choose the ABB 3AUA0000083598 ACH580 HVAC Drive?
The ABB 3AUA0000083598 is a high-performance ACH580 series variable speed drive designed specifically for heating, ventilation and air conditioning (HVAC) applications. This wall-mounted drive delivers reliable motor control for fans, pumps and air handling equipment while improving system energy efficiency and operational reliability.
Built for demanding building automation environments, the drive provides 30 kW output power and 62 A rated current with a 380-480 V three-phase supply. The integrated HVAC functionality simplifies commissioning and operation, allowing building operators and system integrators to optimise airflow, temperature control and energy consumption.
Part of ABB’s trusted ACH580 drive family, the unit combines robust construction with advanced communication capabilities, enabling integration with modern building management systems (BMS) and industrial automation networks.
Key Advantages
- Designed specifically for HVAC applications including pumps, fans and air handling units.
- Delivers 30 kW motor control for medium-power building systems.
- Supports 380-480 V three-phase supply for industrial installations.
- Energy-efficient motor speed control reduces operational costs.
- IP55 enclosure provides protection against dust and water.
- Compatible with multiple industrial communication protocols.
Key Features
- ACH580 series HVAC variable speed drive.
- 30 kW rated output power.
- 62 A rated current.
- 380-480 V AC three-phase input.
- Wall-mounted design for space-efficient installation.
- IP55 protection rating for industrial environments.
- Integrated control panel and PC connectivity.
- Supports multiple fieldbus and communication protocols.
Technical Specifications
- Manufacturer: ABB
- Series: ACH580 HVAC Drives
- Model: ACH580-01-062A-4+B056
- Product ID: 3AUA0000083598
- Drive type: Low voltage AC variable frequency drive
- Application: HVAC motor control
- Rated power: 30 kW
- Rated current: 62 A
- Input voltage: 380-480 V AC
- Input phases: 3-phase
- Rated frequency: 50/60 Hz
- Protection class: IP55
- Frame size: R4
- Mounting: Wall mounted
- Dimensions: approx. 203 mm (W) × 685.5 mm (H) × 265 mm (D)
- Weight: approx. 20 kg
Optimised HVAC Motor Control
Variable speed drives play a critical role in improving energy efficiency in HVAC systems. By adjusting motor speed based on real-time demand, drives such as the ABB ACH580 help reduce electrical consumption, minimise mechanical wear and extend the lifespan of fans and pumps.
These drives are widely used in commercial buildings, manufacturing facilities, hospitals and infrastructure projects where reliable climate control and efficient motor operation are essential.
Typical Applications
- HVAC fan and pump control.
- Air handling units and ventilation systems.
- Commercial building automation systems.
- Industrial climate control systems.
- Energy-efficient motor control for infrastructure projects.
Frequently Asked Questions
What is the ABB 3AUA0000083598 used for?
This product is an ABB ACH580 variable frequency drive designed for controlling motors in HVAC systems such as pumps and fans.
What motor power can this drive control?
The drive supports motors up to approximately 30 kW with a rated output current of 62 A.
What voltage supply does this drive require?
The drive operates from a 380-480 V three-phase AC supply, commonly used in industrial and commercial installations.
Is the drive suitable for harsh environments?
Yes. The IP55 enclosure provides protection against dust and water, making it suitable for many industrial and building automation environments.
Where are ACH580 drives typically installed?
These drives are commonly installed in HVAC control panels to regulate fan, pump and compressor motor speeds within building automation systems.
Trusted by Building Automation Engineers
ABB ACH580 drives are widely used by HVAC engineers and system integrators to deliver efficient motor control and reliable building climate management.
| Manufacturer Part Number | ACH580-01-062A-4+B056 |
|---|---|
| Barcode | 6438177306290 |
| Packed Quantity | 1 |
| Height | 685.5mm |
| Width | 203mm |
| Depth | 265mm |
| HS Code | 85044086 |
| Amperage | 62A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Control Panel Included | Yes |
| Control Setting | BACnet, CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, LON, Modbus, PROFIBUS, PROFINET IO, TCP/IP |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Input Phases | Single Phase |
| Input Frequency | 50/60Hz |
| Integrated breaking resistance | Yes |
| Degree of protection (IP) | IP55 |
| KW Rating | 30kW |
| Number of HW-interfaces RS-485 | 1 |
| Number of HW-interfaces USB | 1 |
| Number of HW-interfaces parallel | 2 |
| Number of HW-interfaces other | 2 |
| Output Frequency | 500Hz |
| Output Voltage | 480VAC |
| Output Phases | Three phase |
| Type of Converter | U converter |
| Relative symmetric net frequency tolerance | 5% |
| Relative symmetric net voltage tolerance | 10% |
| Voltage | 380/480VAC |
| VSD Range | ABB ACH580 |
| With PC connection | Yes |
| Manufacturer | ABB |
| Country of Manufacture | Finland |
| Alternative Product SKU | 3AUA0000083598 |
