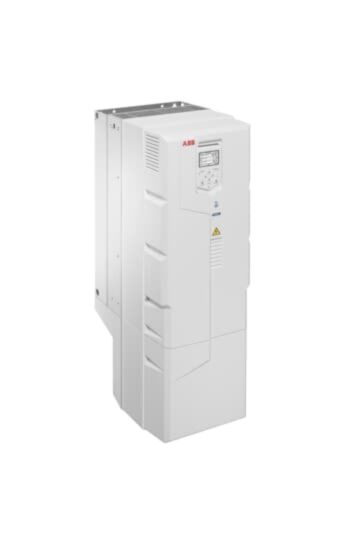

ACH580-01-169A-4 ABB 90kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACH580-01-169A-4 HVAC Drive?

The ABB ACH580-01-169A-4 is a high-performance AC variable frequency drive (VFD) designed specifically for efficient control of motors in HVAC systems. As part of the advanced ABB ACH580 HVAC drive series, it is engineered for fans, pumps, compressors, air handling units, chillers and building automation applications where reliable climate control and energy efficiency are essential.

This drive combines ABB’s proven motor control technology with dedicated HVAC functionality to simplify installation, commissioning and day-to-day operation. Built-in assistants, an intuitive control panel and flexible communication options make the ACH580-01 series easy to integrate into commercial and industrial HVAC systems.

With a rated output power of 90 kW, a nominal output current of 169 A and a three-phase 380–480 V AC supply, the ACH580-01-169A-4 is well suited for demanding HVAC motor control applications. Its wall-mounted IP21 format provides a practical and space-efficient solution for plant rooms, mechanical rooms and control environments.

Key Advantages

• Purpose-built variable frequency drive for HVAC applications.
• 90 kW motor power rating for demanding fan and pump systems.
• 169 A nominal output current for high-capacity HVAC loads.
• Three-phase 380–480 V AC input compatible with industrial and commercial power systems.
• Built-in HVAC control functions help reduce commissioning time.
• Energy-efficient motor control supports lower operating costs.
• Wall-mounted format for straightforward installation.
• Flexible communication options for building management systems.

Key Features

• ABB ACH580 HVAC drive series.
• 90 kW rated output power.
• 169 A nominal output current.
• Three-phase 380–480 V AC input supply.
• Wall-mounted HVAC drive construction.
• Integrated HVAC-specific control panel and start-up assistants.
• Suitable for asynchronous motors, permanent magnet motors and synchronous reluctance motors.
• Supports scalar and vector motor control.
• Designed for energy-efficient fan, pump and compressor control.
• Built-in communication capabilities for automation integration.

Technical Specifications

• Manufacturer: ABB
• Series: ACH580 HVAC Drives
• Model: ACH580-01-169A-4
• Product ID: 3AUA0000080530
• Product type: AC variable frequency drive
• Rated output power: 90 kW
• Rated output current: 169 A
• UL power rating: 125 hp
• UL output current: 156 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Frequency: 48–63 Hz
• Protection rating: IP21
• Enclosure type: NEMA 1
• Mounting type: Wall mounted
• Dimensions (H × W × D): approx. 880 × 284 × 381 mm
• Weight: approx. 56 kg

Efficient Motor Control for HVAC Systems

Variable frequency drives such as the ABB ACH580-01-169A-4 regulate motor speed by adjusting voltage and frequency according to system demand. This helps HVAC systems operate more efficiently, reducing energy consumption while improving comfort, process stability and equipment lifespan.

The ACH580 series is designed with HVAC users in mind. Its built-in functionality supports common HVAC requirements, including fan and pump control, system integration, energy monitoring and reliable operation in normal and mission-critical building environments.

Typical Applications

• Air handling units and ventilation systems.
• HVAC fans and extraction systems.
• Chilled water and heating pump systems.
• Cooling towers and condenser pumps.
• Compressors and chiller systems.
• Commercial buildings and plant rooms.
• Building management and automation systems.
• Industrial climate control applications.

Trusted by HVAC Engineers Worldwide

ABB ACH580 HVAC drives are widely used by building services engineers, facilities managers and automation professionals to deliver reliable climate control, efficient motor operation and seamless integration into modern building systems.
