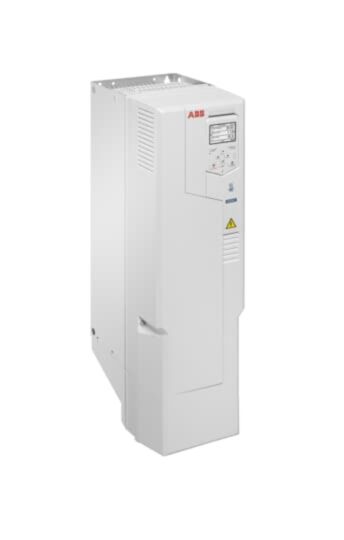

ACH580-01-106A-4 ABB 55kW Three Phase ABB ACH580 Variable Speed Drive

Why Choose the ABB ACH580-01-106A-4 HVAC Drive?

The ABB ACH580-01-106A-4 is a high-performance HVAC variable frequency drive (VFD) designed specifically for heating, ventilation and air-conditioning systems in commercial and industrial buildings. As part of the advanced ABB ACH580 HVAC drive series, it provides precise motor control for fans, pumps, compressors and air-handling equipment while improving energy efficiency and system reliability.

The ACH580 platform integrates dedicated HVAC functionality and intuitive configuration tools that simplify installation and commissioning. Built-in application assistants and specialised HVAC control software allow engineers to optimise system performance quickly while reducing setup time and operational complexity.

With a rated output power of 55 kW and 106 A nominal output current, the drive operates from a three-phase 380–480 V AC supply. Its wall-mounted design with a standard IP21 enclosure enables installation in electrical rooms or control cabinets used in building automation and climate control systems. :contentReference[oaicite:0]{index=0}

Key Advantages

• Specialised HVAC variable frequency drive for building automation systems.
• 55 kW motor power rating suitable for pumps, fans and compressors.
• Three-phase 380–480 V AC supply compatible with standard building electrical systems.
• Integrated HVAC application features reduce installation time.
• Energy-efficient operation for improved building sustainability.
• Reliable control for mission-critical HVAC equipment.

Key Features

• ABB ACH580 HVAC drive series.
• 55 kW rated output power.
• 106 A nominal output current.
• Three-phase 380–480 V AC input voltage.
• Integrated Safe Torque Off (STO) safety functionality.
• Built-in communication including Modbus RTU and building automation protocol support.
• HVAC-specific control panel with guided setup assistants.
• Wall-mounted drive enclosure for control room installation.

Technical Specifications

• Manufacturer: ABB
• Series: ACH580 HVAC Drives
• Model: ACH580-01-106A-4
• Product type: HVAC variable frequency drive
• Rated output power: 55 kW
• Nominal output current: 106 A
• Input voltage: 380–480 V AC
• Input phases: 3-phase
• Frequency: 50 / 60 Hz
• Protection rating: IP21
• Mounting type: Wall mounted
• Typical application: HVAC pumps, fans and compressors

Optimised Control for HVAC Systems

HVAC drives such as the ABB ACH580 regulate motor speed by adjusting the voltage and frequency supplied to the motor. This enables building operators to control airflow, water circulation and cooling capacity more accurately while significantly reducing energy consumption compared with fixed-speed systems.

The ACH580 series is specifically designed for building automation environments, offering integrated HVAC functionality and flexible connectivity with modern building management systems (BMS). These drives are widely used in commercial buildings, hospitals, airports and industrial facilities requiring efficient climate control. :contentReference[oaicite:1]{index=1}

Typical Applications

• HVAC fan control in ventilation systems.
• Chilled water and circulation pumps.
• Air-handling units and climate control systems.
• Cooling towers and compressor systems.
• Commercial buildings and industrial facilities.
• Energy-efficient building automation systems.

Trusted by Building Automation Engineers

ABB ACH580 HVAC drives are trusted worldwide by engineers and facility managers to deliver efficient climate control, reliable motor performance and energy savings in modern buildings.
