ACS880-01-031A-2 ABB 7.5kW Three Phase ABB ACS880 Variable Speed Drive
MPN: ACS880-01-031A-2
Alt. SKU: 3ABD0000123756

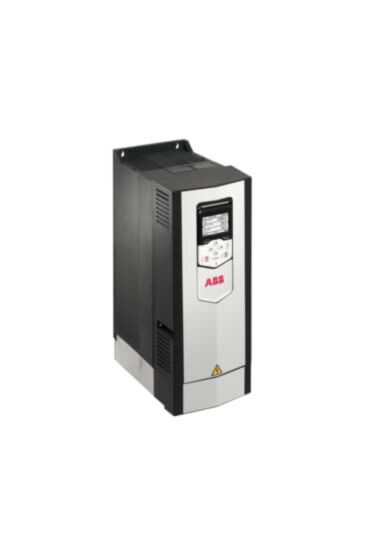

ABB 3ABD0000123756 ACS880-01-031A-2 Variable Speed Drive for Demanding Industrial Motor Control
The ABB 3ABD0000123756 is a low-voltage, wall-mounted ACS880-01-031A-2 variable speed drive, rated at 7.5 kW. Designed for three-phase motor control on 208–240 V networks, it provides precise speed and torque regulation for pumps, fans, conveyors and general-purpose machinery. With a compact IP21 enclosure and advanced control interfaces, it is well suited to UK control panels, OEM equipment and retrofit projects where space, energy efficiency and reliable process control are key.
Technical Specifications
- Manufacturer: ABB
- ABB identifier (SKU): 3ABD0000123756
- Drive type: ACS880-01 wall-mounted single drive
- Model designation: ACS880-01-031A-2
- Rated motor power: 7.5 kW (typical application rating)
- Rated output current: 31 A
- Supply voltage: 208–240 V AC
- Input phases: Single phase
- Input frequency: 50/60 Hz
- Output voltage: up to 240 V AC
- Output phases: Three phase
- Maximum output frequency: up to 500 Hz
- Voltage tolerance (supply): ±10 % (typical for ACS880-01 208–240 V range)
- Network frequency tolerance: ±5 %
- Enclosure protection: IP21 (indoor, drip‑proof)
- Integrated braking resistance: Yes (internal brake chopper with integrated resistor for dynamic braking)
- Analogue inputs: 2
- Analogue outputs: 2
- Digital inputs: 6
- Fieldbus / control interfaces: CAN, DeviceNet, DeviceNet Safety, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe (via suitable communication options)
- Built-in fieldbus: One RS‑485 interface
- Additional hardware interfaces: 4 configurable I/O/communication hardware interfaces (as per ACS880-01 platform)
- Dimensions (H × W × D): approximately 475 mm × 172 mm × 261 mm
- Mounting: Wall-mounted, compact form factor for panel or machinery mounting
- Country of manufacture: China (for this specific variant)
- Typical applications: Process lines, material handling, pumping, ventilation and general industrial drives requiring high performance control
Trusted By Customers Worldwide
“We use ABB ACS880 drives like this one across several panels; commissioning is straightforward and they handle tough industrial duty without causing nuisance trips.”
Frequently Asked Questions
Is the ABB 3ABD0000123756 suitable for controlling standard three-phase induction motors?
Yes. The ACS880-01-031A-2 is designed for three-phase motor control on a 208–240 V network and is suitable for standard squirrel‑cage induction motors, as well as many high-efficiency motors, provided the motor current and voltage are within the drive’s ratings. Always verify the motor full-load current does not exceed 31 A.
Can this drive be installed in a typical UK control panel environment?
Yes. With its compact wall-mounted IP21 enclosure and 208–240 V supply rating, the drive is commonly used in control panels and machinery enclosures. Ensure adequate ventilation, clearance for cooling and adherence to local wiring regulations such as BS 7671 when integrating it into a panel.
What communication options are available for integration with PLCs and plant networks?
The ACS880-01 platform provides a standard RS‑485 interface and supports a range of industrial fieldbuses through appropriate option modules, including CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS and PROFINET IO, with safety variants such as DeviceNet Safety and PROFIsafe. This allows straightforward integration with most modern PLC systems used in UK industrial installations.
Does the ACS880-01-031A-2 have built-in braking capability for stopping high-inertia loads?
This variant incorporates integrated braking resistance and a brake chopper, making it suitable for applications requiring controlled deceleration and dynamic braking, such as vertical conveyors or fast‑stopping mechanisms. For very high inertia or safety‑critical stopping, verify the braking duty and thermal capacity of the internal resistor or consider an external resistor where recommended.
What motor cable and protection should I use with this drive?
Use suitably rated three‑phase screened motor cable sized for at least the motor full‑load current and within the drive’s 31 A output rating. Install upstream overcurrent and short‑circuit protection according to ABB’s ACS880 installation instructions and local standards. EMC performance is improved when using screened cable with correctly terminated shields at the drive and motor ends.
Can the 3ABD0000123756 be used in pump and fan energy-saving applications?
Yes. The ACS880-01 range is widely used for variable torque pump and fan duties. By matching speed to actual process demand, significant energy savings are achievable compared with fixed-speed operation using throttling or dampers. The built‑in control functions and I/O make it easy to integrate level, pressure or temperature feedback for closed‑loop operation.
What should I check before retrofitting this drive into an existing installation?
Confirm that the available supply voltage is within 208–240 V, that the existing motor is compatible and within the 31 A current rating, and that the enclosure environment (temperature, dust, moisture) suits an IP21 drive. Also check space for cable entry and cooling clearance, and review control wiring so that existing start/stop, interlocks and safety functions map correctly to the ACS880-01 control terminals.
