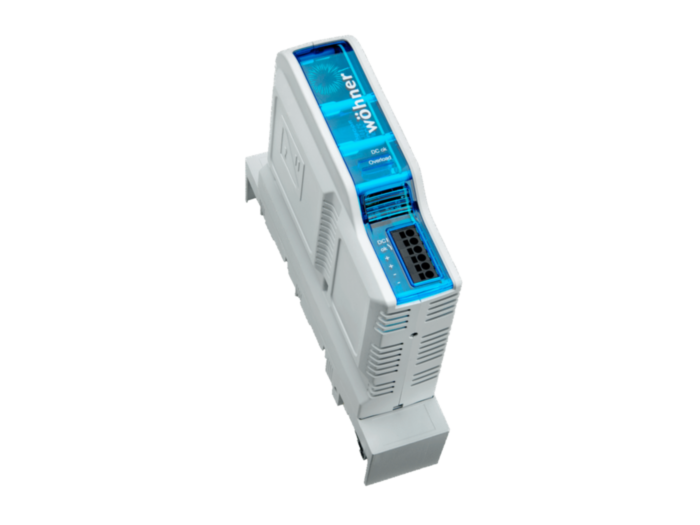

36202 Wohner power supply 10 A
MPN: 36202
Alt. SKU: 36202000A
Special Price
£421.07
£350.89
Regular Price
£526.33
Why Choose the Power Supply 10 A (36202)?
The Power Supply 10 A (36202) is a reliable mechanical component designed for efficient power distribution within industrial electrical systems. With a high efficiency of 95%, it supports compact installations with a width of only 45 mm. This product is self-protected against short circuits and features an intelligent restart function, eliminating the need for a pre-fuse. It is suitable for use with busbars of various sizes and complies with overvoltage category III, ensuring robust performance and safety.
Key Benefits
- High efficiency of 95% for energy-saving operation
- Compact installation width of 45 mm to save space
- Self-protection against short circuits with intelligent restart
- No pre-fuse required, simplifying installation
- Compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 and section busbars
- Halogen-free construction for environmental safety
- Multiple UL approvals for USA and Canada ensuring compliance and safety
- Mechanical product - does not carry current itself but supports power supply systems
Technical Specifications
- Item number: 36202
- Description: power supply 10 A
- Rated voltage AC: 480 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 45 x 200 x 172 mm
- Weight: 71.8 kg/100
- Halogen free: Yes
- Approval: UL 61010-1
- Approval: UL 61010-2-201
- Approval: for UL feeder circuits >250V
- Approval: type number: BROOME10
- Approval: UL file: E497002, UL category (for USA): NMTR. https://www.ul.com
- Approval: UL file: E497002, UL category (for Canada): NMTR7. https://www.ul.com
Frequently Asked Questions
Is this power supply suitable for all busbar sizes?
Yes, it is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 and section busbars.
Does this product carry current directly?
No, as a mechanical product, it does not carry current itself but supports the power supply system.
What safety approvals does this product have?
It holds multiple UL approvals including UL 61010-1 and UL 61010-2-201, suitable for feeder circuits above 250V in USA and Canada.
Is the product environmentally friendly?
Yes, it is halogen-free, contributing to safer environmental standards.
| Manufacturer Part Number | 36202 |
|---|---|
| Barcode | 4021267362027 |
| Height | 200mm |
| Width | 45mm |
| Depth | 172mm |
| Alternative Product SKU | 36202000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Degree of protection (IP) | IP30 |
| Output Voltage | 24; 24 |
| Max. output current 1 | 10A |
| Built-in height | 200mm |
