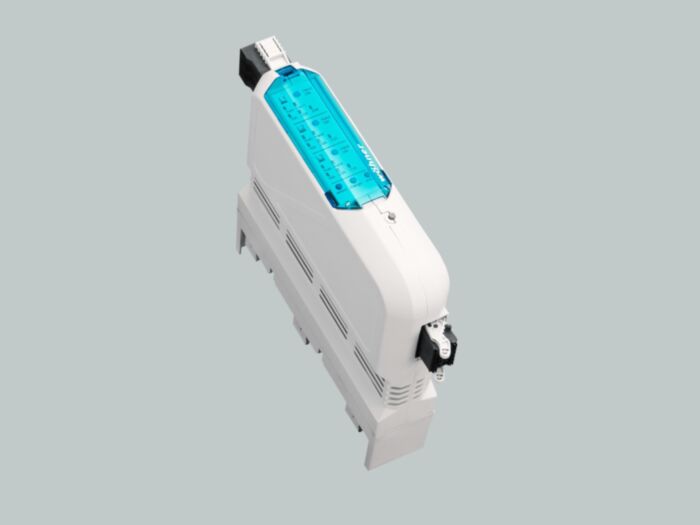

36158 Wohner hybrid switch, 3-pole or 1-pole switchable
MPN: 36158
Alt. SKU: 36158000A
Special Price
£576.72
£480.60
Regular Price
£720.91
Why Choose the Hybrid Switch, 3-pole or 1-pole Switchable (36158)?
The hybrid switch 36158 offers versatile switching options with its 3-pole or 1-pole switchable design, making it ideal for a range of resistive load applications. Designed for use with busbars of various sizes, it incorporates advanced CrossLink® Technology for enhanced performance and reliability. This product complies with UL standards, ensuring safety and quality for industrial electrical installations. Its halogen-free construction supports environmentally conscious projects.
Key Benefits
- Switchable 3-pole or 1-pole configuration for flexible application.
- Suitable for resistive loads up to 20 A, supporting robust electrical performance.
- Compatible with multiple busbar sizes: 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
- Incorporates CrossLink® Technology for improved switching reliability.
- Halogen-free design promotes safer and more sustainable installations.
- UL 60947-1 certified, meeting stringent safety and quality standards.
- Phase-out product; consult your Wöhner sales partner for availability and alternatives.
Technical Specifications
- Item number: 36158
- Description: hybrid switch, 3-pole or 1-pole switchable
- Rated current: 20 A
- Rated voltage AC: 480 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 36 x 200 x 144 mm
- Weight: 45.8 kg/100
- Halogen free: Yes
- Approval: UL 60947-1
- Approval: for UL feeder circuits >250V
- Approval: type number: OM25-H-60
- Approval: UL file: E483362, UL category (for USA): NRNT https://www.ul.com
- Approval: UL file: E483362, UL category (for Canada): NRNT7 https://www.ul.com
Frequently Asked Questions
Is this hybrid switch suitable for inductive loads?
This hybrid switch is designed specifically for resistive loads and may not be suitable for inductive load applications.
Can the switch be used with different busbar sizes?
Yes, it is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars, providing installation flexibility.
Does this switch carry current directly?
As a mechanical switching device, it carries current during operation but is designed for switching resistive loads up to 20 A.
Is the product still available for purchase?
This is a phase-out product. Please contact your Wöhner sales partner for current availability and alternative solutions.
Where can I find technical documentation and CAD models?
Technical information, operation instructions, and CAD models are available for download from the Wöhner website.
| Manufacturer Part Number | 36158 |
|---|---|
| Barcode | 4021267361587 |
| Height | 200mm |
| Width | 36mm |
| Depth | 144mm |
| Alternative Product SKU | 36158000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Degree of protection (IP) | IP20 |
| Type of electrical connection of main circuit | Other |
| Rated operation current Ie | 20A |
