36155 Wohner spare part busbar adapter 25 A
MPN: 36155
Alt. SKU: 36155000A
Special Price
£25.32
£21.10
Regular Price
£31.66

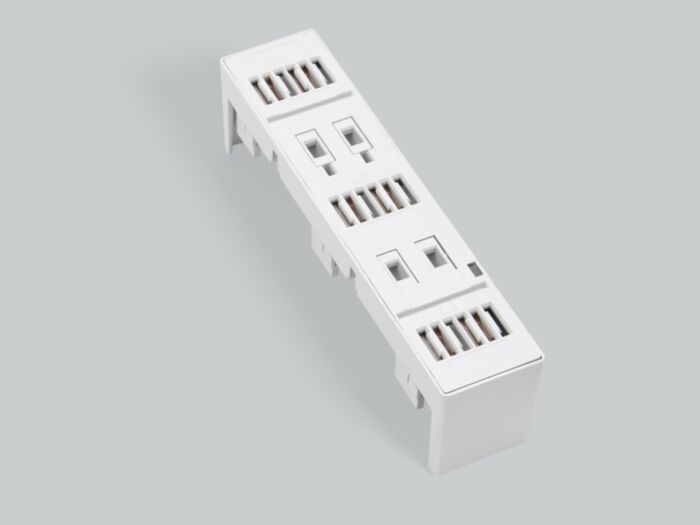

Spare Part Busbar Adapter 25 A (36155)
The spare part busbar adapter 25 A (Part No.: 36155 000A) is designed as a busbar adapter base compatible with busbars sized 12 x 5 and 10 mm. Featuring the CrossLink® interface, it integrates seamlessly within the 30Compact 3P system, providing a reliable mechanical connection solution. This product is halogen free and carries multiple UL approvals, ensuring compliance with stringent safety standards.
Why Choose the Spare Part Busbar Adapter 25 A?
- Designed for compatibility with standard busbars (12 x 5, 10 mm) ensuring versatile application.
- Incorporates the advanced CrossLink® interface for secure and efficient mechanical connections.
- Halogen free construction supports environmentally responsible installations.
- Extensively UL certified for safety and reliability in feeder circuits above 250 V.
- Part of the 30Compact 3P system, facilitating easy integration into existing setups.
Key Benefits
- Mechanical product that does not carry current, ensuring safe and reliable busbar adaptation.
- Compact dimensions (36 x 160 x 42 mm) allow for space-efficient installation.
- Lightweight design (10.6 kg per 100 units) simplifies handling and assembly.
- Comprehensive documentation and CAD models available for precise planning and implementation.
- Robust UL approvals provide confidence in product quality and compliance.
Technical Specifications
- Item number: 36155
- Description: spare part busbar adapter 25 A
- Rated voltage AC: 500 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 36 x 160 x 42 mm
- Weight: 10.6 kg/100
- Halogen free: Yes
- Approval: UL 60947-1
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: 36155
- Approval: UL file: E483362, UL category (for USA): NRNT https://www.ul.com
- Approval: UL file: E483362, UL category (for Canada): NRNT7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar adapter 36155 suitable for carrying electrical current?
No, this is a mechanical product designed as an adapter base and does not carry electrical current.
What busbar sizes are compatible with this adapter?
The adapter is compatible with busbars sized 12 x 5 mm and 10 mm.
Does the product meet any safety certifications?
Yes, it holds UL 60947-1 certification and is approved for UL feeder circuits above 250 V.
Is the busbar adapter environmentally friendly?
Yes, it is halogen free, supporting environmentally responsible electrical installations.
Where can I find technical documentation and CAD models?
Technical information, operation instructions, and CAD models are available for download from the manufacturer's website.
| Manufacturer Part Number | 36155 |
|---|---|
| Barcode | 4021267361556 |
| Height | 160mm |
| Width | 36mm |
| Depth | 42mm |
| Alternative Product SKU | 36155000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Rated current In | 25A |
| Min. busbar thickness | 5mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 36mm |
