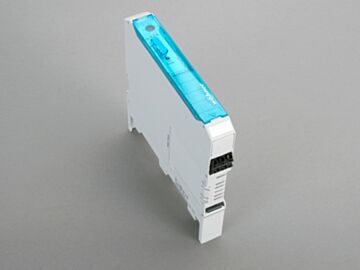

36107 Wohner hybrid motor starter, 3-pole
MPN: 36107
Alt. SKU: 36107000B
Special Price
£294.66
£245.55
Regular Price
£368.33
Why Choose the Hybrid Motor Starter, 3-Pole (36107)?
The MOTUS 30Compact hybrid motor starter offers a compact and versatile solution for controlling motors with integrated safety features. Designed for direct and reversing motor starting, it supports rated currents up to 6.5 A and resistive load switching up to 9.0 A. Its slim 22.5 mm width and CrossLink® Technology enable efficient installation on busbars of 12 x 5 or 10 mm, making it ideal for space-conscious applications. This starter combines multiple functions into one device, reducing wiring complexity and enhancing system reliability.
Key Benefits
- Four integrated functions: right contactor, left contactor, motor protection relay, and EMERGENCY STOP protection up to category 3
- Compact design with an installed width of only 22.5 mm, optimising panel space
- High durability with up to 30 million electrical switching operations
- Halogen-free construction for environmentally conscious installations
- Wide approval range including UL 60947-1, CCC, and ATEX for global compliance
- Suitable for UL feeder circuits over 250 V, ensuring versatile application
Technical Specifications
- Item number: 36107
- Description: hybrid motor starter, 3-pole
- Rated current: 6.5 A
- Rated voltage AC: 500 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 22.5 x 160 x 156 mm
- Weight: 55.9 kg/100
- Halogen free: Yes
- Approval: UL 60947-1
- Approval: UL , CCC , Atex
- Approval: for UL feeder circuits >250V
- Approval: type number: 36111.1
- Approval: UL file: E360470, UL category (for USA): NLDX https://www.ul.com
- Approval: UL file: E360470, UL category (for Canada): NLDX7 https://www.ul.com
- Approval: CCC certificate: 2019010304252617
- Approval: Type-Examination Certificate: PTB13AT3001
Frequently Asked Questions
What functions are integrated into the hybrid motor starter?
The starter integrates four functions: right contactor, left contactor, motor protection relay, and EMERGENCY STOP protection up to category 3.
Is this product suitable for reversing motor control?
Yes, it is designed as a direct and reversing starter supporting rated currents from 1.5 to 6.5 A.
Does the starter carry current mechanically?
This is an electrical device designed to carry current; mechanical components within do not carry current.
What approvals does this product have?
It is approved to UL 60947-1, UL, CCC, and ATEX standards, suitable for UL feeder circuits over 250 V.
Where can I find technical documentation and CAD models?
Technical information, operation instructions, CAD models in PDF and STP formats, and other downloads are available via the product's official links.
| Manufacturer Part Number | 36107 |
|---|---|
| Barcode | 4021267361075 |
| Height | 160mm |
| Width | 22.5mm |
| Depth | 156mm |
| Alternative Product SKU | 36107000B |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Degree of protection (IP) | IP20 |
| Type of electrical connection of main circuit | Other |
| Rated operation current Ie | 9A |
