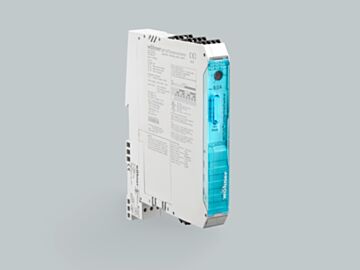

36106 Wohner hybrid motor starter, 3-pole
MPN: 36106
Alt. SKU: 36106000B
Special Price
£297.62
£248.02
Regular Price
£372.02
Why Choose the Hybrid Motor Starter, 3-Pole (36106)?
The hybrid motor starter 36106 offers a compact and efficient solution for controlling and protecting motors in industrial applications. Designed for mounting on rails, it integrates multiple functions into a single device, reducing panel space and simplifying installation. With advanced CrossLink® Technology and the capability to perform direct and reversing motor starts, this starter ensures reliable operation and enhanced safety. Its robust design supports up to 30 million electrical switching operations, making it a durable choice for demanding environments.
Key Benefits
- Four integrated functions: right contactor, left contactor, motor protection relay, and EMERGENCY STOP protection up to category 3.
- Compact installation width of only 22.5 mm saves valuable panel space.
- Supports direct and reversing motor starting with rated currents from 1.5 to 6.5 A.
- Switching capability for resistive loads up to 9.0 A.
- Halogen-free construction for environmentally responsible installations.
- Certified to multiple international standards including UL 60947-1, CCC, and ATEX.
- High short-circuit current rating (SCCR) of 100 kA with appropriate fuse protection.
Technical Specifications
- Item number: 36106
- Description: hybrid motor starter, 3-pole
- Rated current: 6.5 A
- Rated voltage AC: 500 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 22.5 x 185 x 149 mm
- Weight: 59.2 kg/100
- Halogen free: Yes
- Approval: UL 60947-1
- Approval: UL , CCC , Atex
- Approval: for UL feeder circuits >250V
- Approval: type number: 36111.1
- Approval: UL file: E360470, UL category (for USA): NLDX https://www.ul.com
- Approval: UL file: E360470, UL category (for Canada): NLDX7 https://www.ul.com
- Approval: CCC certificate: 2019010304252617
- Approval: Type-Examination Certificate: PTB13AT3001
Frequently Asked Questions
What functions are integrated into the hybrid motor starter 36106?
The device integrates four functions: right contactor, left contactor, motor protection relay, and EMERGENCY STOP protection up to category 3.
Is the hybrid motor starter suitable for direct and reversing motor starting?
Yes, it supports both direct and reversing motor starting with rated currents from 1.5 to 6.5 A.
What is the significance of CrossLink® Technology in this product?
CrossLink® Technology enhances the reliability and performance of the motor starter by optimising the switching and protection functions within a compact design.
Does this product carry current mechanically?
This is an electrical product designed to carry current; mechanical parts within do not carry current.
Is the hybrid motor starter environmentally friendly?
Yes, it is halogen free, supporting environmentally responsible installations.
| Manufacturer Part Number | 36106 |
|---|---|
| Barcode | 4021267361068 |
| Height | 185mm |
| Width | 22.5mm |
| Depth | 149mm |
| Alternative Product SKU | 36106000B |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Degree of protection (IP) | IP20 |
| Type of electrical connection of main circuit | Other |
| Rated operation current Ie | 9A |
