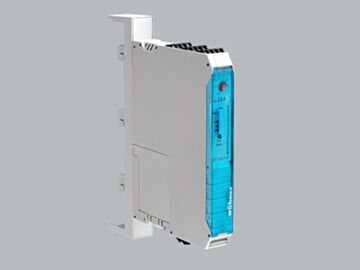

36105 Wohner hybrid motor starter, 3-pole
MPN: 36105
Alt. SKU: 36105000B
Special Price
£295.12
£245.93
Regular Price
£368.89
Why Choose the Hybrid Motor Starter, 3-Pole (36105)?
The MOTUS 60Classic hybrid motor starter offers a compact and efficient solution for motor control applications. Designed with CrossLink® Technology, it integrates four essential functions into a single device: right contactor, left contactor, motor protection relay, and EMERGENCY STOP protection up to category 3. Its slim width of only 22.5 mm makes it ideal for space-saving installations on busbars of various sizes. With a robust design supporting up to 30 million electrical switching operations, this starter ensures long-lasting reliability and safety in demanding industrial environments.
Key Benefits
- Integrated multi-functionality reduces the need for multiple components.
- Compact design optimises panel space with a width of just 22.5 mm.
- Supports direct and reversing starter functions for currents from 0.18 to 2.4 A.
- Compatible with busbars of 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
- Halogen-free construction promotes environmental safety.
- Certified to international standards including UL 60947-1, CCC, and ATEX.
- High short-circuit current rating (SCCR) of 100 kA with appropriate fuse protection.
Technical Specifications
- Item number: 36105
- Description: hybrid motor starter, 3-pole
- Rated current: 2 A
- Rated voltage AC: 500 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 22.5 x 200 x 156 mm
- Weight: 56.5 kg/100
- Halogen free: Yes
- Approval: UL 60947-1
- Approval: UL , CCC , Atex
- Approval: for UL feeder circuits >250V
- Approval: type number: 36110.1
- Approval: UL file: E360470, UL category (for USA): NLDX https://www.ul.com
- Approval: UL file: E360470, UL category (for Canada): NLDX7 https://www.ul.com
- Approval: CCC certificate: 2019010304252617
- Approval: Type-Examination Certificate: PTB13AT3001
Frequently Asked Questions
What functions are integrated into this hybrid motor starter?
This device integrates four functions: right contactor, left contactor, motor protection relay, and EMERGENCY STOP protection up to category 3.
Is this starter suitable for reversing motor applications?
Yes, it supports both direct and reversing starter functions for currents ranging from 0.18 to 2.4 A.
What busbar sizes is this starter compatible with?
It is designed for busbars measuring 12, 15, 20, 25, 30 x 5, 10 mm as well as section busbars.
Does the hybrid motor starter carry current mechanically?
No, as a mechanical starter, it does not carry current mechanically but controls the electrical circuit electronically.
What certifications does this product have?
It holds certifications including UL 60947-1, UL, CCC, ATEX, and a Type-Examination Certificate PTB13AT3001.
| Manufacturer Part Number | 36105 |
|---|---|
| Barcode | 4021267361051 |
| Height | 200mm |
| Width | 22.5mm |
| Depth | 156mm |
| Alternative Product SKU | 36105000B |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Degree of protection (IP) | IP20 |
| Type of electrical connection of main circuit | Other |
| Rated operation current Ie | 2.4A |
