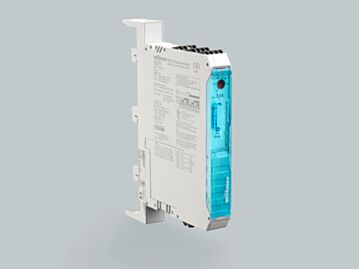

36102 Wohner hybrid motor starter, 3-pole
MPN: 36102
Alt. SKU: 36102000B
Special Price
£295.12
£245.93
Regular Price
£368.89
Why Choose the Hybrid Motor Starter, 3-pole (36102)?
The MOTUS 60Classic hybrid motor starter offers a compact and efficient solution for controlling motors with direct and reversing functions. Designed for rated currents from 0.075 to 0.6 A, it is suitable for a variety of busbar sizes and section busbars. Featuring CrossLink® Technology, this starter integrates four essential functions into a single device: right contactor, left contactor, motor protection relay, and EMERGENCY STOP protection up to category 3. Its slim profile with an installed width of only 22.5 mm ensures space-saving installation without compromising performance. The device is halogen free and built to withstand up to 30 million electrical switching operations, ensuring long-term reliability and safety in industrial environments.
Key Benefits
- Four integrated functions reduce the need for additional components, simplifying wiring and installation.
- Compact design with only 22.5 mm installed width saves valuable panel space.
- Supports direct and reversing motor control for versatile application.
- High durability with up to 30 million electrical switching operations.
- Compatible with various busbar sizes: 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
- Halogen free materials enhance environmental safety and reduce toxic emissions in case of fire.
- Comprehensive approvals including UL, CCC, and ATEX ensure compliance with international standards.
Technical Specifications
- Item number: 36102
- Description: hybrid motor starter, 3-pole
- Rated current: 0.6 A
- Rated voltage AC: 500 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 22.5 x 200 x 156 mm
- Weight: 56.1 kg/100
- Halogen free: Yes
- Approval: UL 60947-1
- Approval: UL , CCC , Atex
- Approval: for UL feeder circuits >250V
- Approval: type number: 36109.1
- Approval: UL file: E360470, UL category (for USA): NLDX https://www.ul.com
- Approval: UL file: E360470, UL category (for Canada): NLDX7 https://www.ul.com
- Approval: CCC certificate: 2019010304252617
- Approval: Type-Examination Certificate: PTB13AT3001
Frequently Asked Questions
What functions does the hybrid motor starter integrate?
It integrates four functions: right contactor, left contactor, motor protection relay, and EMERGENCY STOP protection up to category 3.
Is this motor starter suitable for reversing motor control?
Yes, it supports both direct and reversing motor control for rated currents from 0.075 to 0.6 A.
What busbar sizes are compatible with this starter?
The starter is compatible with busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
Does the product comply with international safety standards?
Yes, it holds approvals including UL 60947-1, CCC, ATEX, and is certified for UL feeder circuits above 250 V.
Is the product environmentally friendly?
Yes, it is halogen free, reducing toxic emissions and enhancing safety in case of fire.
| Manufacturer Part Number | 36102 |
|---|---|
| Barcode | 4021267361020 |
| Height | 200mm |
| Width | 22.5mm |
| Depth | 156mm |
| Alternative Product SKU | 36102000B |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Degree of protection (IP) | IP20 |
| Type of electrical connection of main circuit | Other |
| Rated operation current Ie | 0.6A |
