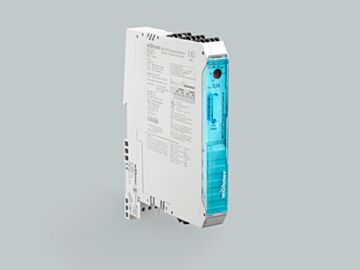

36100 Wohner hybrid motor starter, 3-pole
MPN: 36100
Alt. SKU: 36100000B
Special Price
£297.62
£248.02
Regular Price
£372.02
Why Choose the Hybrid Motor Starter, 3-pole (36100)?
The hybrid motor starter 36100 offers a compact and efficient solution for motor control with integrated safety and protection features. Designed for panel mounting with a slim width of only 22.5 mm, it combines multiple functions into one device, reducing installation space and complexity. Its CrossLink® Technology ensures reliable operation and longevity with up to 30 million electrical switching operations. Suitable for direct and reversing motor control as well as resistive load switching, this starter meets rigorous international approvals, ensuring compliance and safety in demanding industrial environments.
Key Benefits
- Four integrated functions: right contactor, left contactor, motor protection relay, and EMERGENCY STOP protection up to category 3
- Compact design with an installed width of only 22.5 mm, optimising panel space
- High durability with 30 million electrical switching operations
- Supports direct and reversing motor starting for currents from 0.075 to 0.6 A
- Suitable for switching resistive loads within the same current range
- Halogen-free construction for environmentally conscious installations
- Comprehensive approvals including UL 60947-1, CCC, and ATEX for global compliance
- High short-circuit current rating (SCCR) of 100 kA with appropriate fuse protection
Technical Specifications
- Item number: 36100
- Description: hybrid motor starter, 3-pole
- Rated current: 0.6 A
- Rated voltage AC: 500 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 22.5 x 185 x 149 mm
- Weight: 58.1 kg/100
- Halogen free: Yes
- Approval: UL 60947-1
- Approval: UL , CCC , Atex
- Approval: for UL feeder circuits >250V
- Approval: type number: 36109.1
- Approval: UL file: E360470, UL category (for USA): NLDX https://www.ul.com
- Approval: UL file: E360470, UL category (for Canada): NLDX7 https://www.ul.com
- Approval: CCC certificate: 2019010304252617
- Approval: Type-Examination Certificate: PTB13AT3001
Frequently Asked Questions
What functions are integrated into the hybrid motor starter 36100?
This device integrates four functions: right contactor, left contactor, motor protection relay, and EMERGENCY STOP protection up to category 3, providing comprehensive motor control and safety in one compact unit.
Is the hybrid motor starter suitable for reversing motor control?
Yes, it supports both direct and reversing motor starting for currents between 0.075 and 0.6 A, making it versatile for various motor applications.
Does the hybrid motor starter carry current mechanically?
As an electrical device, it carries current during operation. However, any mechanical components within do not carry current themselves.
What approvals does the product have?
The starter is approved under UL 60947-1, UL, CCC, and ATEX standards, including specific UL files for USA and Canada, ensuring compliance with international safety and performance requirements.
Is the product environmentally friendly?
Yes, it is halogen-free, supporting environmentally responsible electrical installations.
| Manufacturer Part Number | 36100 |
|---|---|
| Barcode | 4021267361006 |
| Height | 185mm |
| Width | 22.5mm |
| Depth | 149mm |
| Alternative Product SKU | 36100000B |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Degree of protection (IP) | IP20 |
| Type of electrical connection of main circuit | Other |
| Rated operation current Ie | 0.6A |
