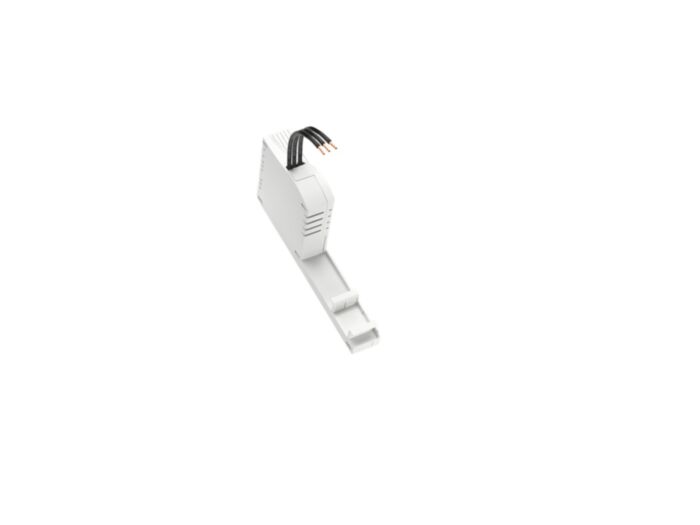

36009000A Woehner 3 pole 16A Adapter
MPN: 36009
Alt. SKU: 36009000A
Special Price
£49.30
£41.08
Regular Price
£61.62
Why Choose the Wöhner 36009 CrossBoard® Adapter?
The Wöhner 36009 is a precision-engineered CrossBoard® adapter designed for the secure and efficient integration of modular switching and protection devices into the CrossBoard® busbar system. It enables rapid installation while ensuring reliable electrical contact and stable mechanical mounting within compact power distribution assemblies.
Developed for industrial panel builders and OEM manufacturers, the 36009 supports reduced wiring effort, optimised panel layouts and scalable system expansion. Its robust construction ensures dependable long-term performance in demanding industrial and commercial environments.
Key Features
- CrossBoard® adapter for modular device integration.
- Ensures secure electrical contact with the busbar system.
- Stable mechanical fixing for industrial installations.
- Compact footprint for high-density switchgear panels.
- Supports modular and scalable power distribution architecture.
- Suitable for industrial and commercial assemblies.
Technical Specifications
- Manufacturer: Wöhner
- Model: 36009
- MPN: 36009000A
- Product type: CrossBoard® adapter
- System compatibility: CrossBoard®
- Application: Modular switching and protection devices
- Mounting type: Direct integration onto CrossBoard®
- Compliance: Suitable for IEC and UL assemblies when used within approved systems
- EAN: 4021267360099
Typical Applications
- Mounting miniature circuit breakers and modular protection devices onto CrossBoard®.
- Industrial distribution boards and switchgear systems.
- OEM control cabinets requiring compact and modular busbar solutions.
- Commercial installations using scalable CrossBoard® architecture.
Frequently Asked Questions
What is the Wöhner 36009 used for?
The 36009 is a CrossBoard® adapter used to mount modular switching and protection devices directly onto the busbar system.
Which system is it compatible with?
It is specifically designed for the Wöhner CrossBoard® busbar system.
Does it provide electrical contact with the busbar?
Yes. The adapter ensures secure and reliable electrical connection within the CrossBoard® assembly.
Is it suitable for industrial panel building?
Yes. It is intended for industrial and commercial switchgear assemblies built to IEC and UL standards when used within approved systems.
Can it support system expansion?
Yes. The modular CrossBoard® concept allows straightforward expansion and reconfiguration as distribution requirements evolve.
| Manufacturer Part Number | 36009 |
|---|---|
| Barcode | 4021267360092 |
| Height | 16mm |
| Width | 200mm |
| Depth | 30mm |
| Country of Manufacture | Germany |
| HS Code | 85369095 |
| Alternative Product SKU | 36009000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Range | Crossboard |
| Number of Poles | 3 pole |
| Halogen free | Yes |
| Rated voltage | 690V |
| Rated current | 16A |
| Busbar distance | 60mm |
| Mounting rail armament | 1 mounting rail |
| Rated current In | 16A |
| Max. rated operation current Ie | 16A |
| Rated voltage AC | 600V |
| Rated surge voltage | 6kV |
| Width of the adaptor | 22.5mm |
| Rated Frequency | 50Hz/60Hz |
| Rated Isolation Voltage Ui AC | 800V |
| Max. Permitted Voltage (IEC) AC | 725V |
