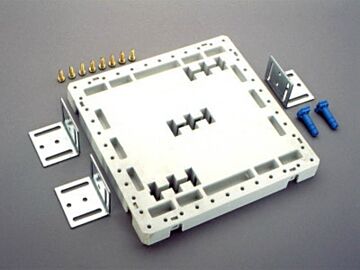

35001 Wohner busbar support, 3-pole, centre
MPN: 35001
Alt. SKU: 35001000
Special Price
£142.74
£118.95
Regular Price
£178.42
Busbar Support, 3-Pole, Centre (35001)
The 3-pole centre busbar support is designed to securely hold busbars with dimensions 30 x 10 mm, including double-T and triple-T sections. This mechanical component is ideal for centre feed units in electrical distribution systems, ensuring stable and reliable support without carrying current itself.
Why Choose the 3-Pole Centre Busbar Support?
- Robust design suitable for various busbar profiles including double-T and triple-T sections.
- Halogen-free construction promotes safer installations and environmental compliance.
- Certified with multiple UL approvals, ensuring compliance with North American safety standards.
- Optimised for centre feed units, enhancing system reliability and ease of maintenance.
- Dimensions and weight engineered for secure mounting and long-term stability.
Key Benefits
- Mechanical support without carrying electrical current, reducing risk of electrical faults.
- Compatible with busbars rated up to 600 V AC and frequencies of 50/60 Hz.
- UL 508 and other UL approvals provide assurance of quality and safety.
- Halogen-free material reduces toxic emissions in case of fire.
- Comprehensive technical documentation and CAD models available for seamless integration.
Technical Specifications
- Item number: 35001
- Description: busbar support, 3-pole, centre
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 30 x 300 x 300 mm
- Weight: 458.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: Z1140-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Does this busbar support carry electrical current?
No, this is a mechanical busbar support designed solely to hold busbars in place and does not carry current.
What busbar sizes are compatible with this support?
It is suitable for busbars sized 30 x 10 mm, including double-T and triple-T sections.
Is the product halogen free?
Yes, the busbar support is made from halogen-free materials to enhance safety and environmental compliance.
What approvals does this product have?
The product holds UL 508 certification and other UL approvals for feeder circuits above 250 V, ensuring compliance with North American standards.
Where can I find technical documentation and CAD models?
Technical information, mounting instructions, and CAD models in various formats are available via the product downloads on the manufacturer's website.
| Manufacturer Part Number | 35001 |
|---|---|
| Barcode | 4021267350017 |
| Height | 300mm |
| Width | 30mm |
| Depth | 300mm |
| Alternative Product SKU | 35001000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
