33724 Wohner in-line fuse switch-disconnector 160 A
MPN: 33724
Alt. SKU: 33724000A
Special Price
£361.57
£301.31
Regular Price
£451.96

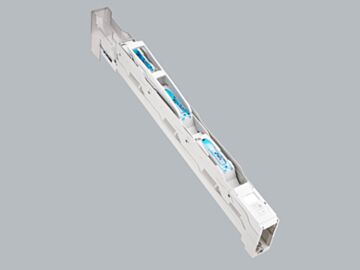

In-line Fuse Switch-Disconnector 160 A (33724)
The in-line fuse switch-disconnector 160 A, part number 33724, is a high-quality mechanical device designed for safe and reliable disconnection and fuse protection in electrical systems. It features a 3-pole switchable design with fuse monitoring and a flat version with M8 screws, suitable for busbars ranging from 30 to 120 x 10 mm. This product is part of the 185Power system and includes self-closing inspection holes and a lockable cover for enhanced safety and convenience.
Why Choose the In-line Fuse Switch-Disconnector 160 A?
- Robust mechanical design ensures reliable operation without carrying current internally.
- Self-closing inspection holes allow safe and easy visual fuse monitoring.
- Lockable cover enhances security by preventing unauthorised access.
- Compatible with a wide range of busbar sizes for flexible installation.
- Part of the trusted 185Power system, ensuring high quality and system compatibility.
Key Benefits
- Safe disconnection and fuse protection in electrical installations.
- Simple and secure mounting with flat version and M8 screws.
- Durable construction designed for industrial environments.
- Clear inspection access without compromising safety.
- Certified with type number QU185-00 and CCC certificate for assured compliance.
Technical Specifications
- Item number: 33724
- Description: in-line fuse switch-disconnector 160 A
- Dimensions (W x H x D): 50 x 670 x 147 mm
- Weight: 220.0 kg/100
- Halogen free: No
- Approval: type number: QU185-00
- Approval: CCC certificate: 2015010302769751
Frequently Asked Questions
Does this fuse switch-disconnector carry current internally?
No, this is a mechanical product and does not carry current internally.
What busbar sizes is this product compatible with?
It is compatible with busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm.
Is the cover lockable for safety?
Yes, the cover can be locked when closed to prevent unauthorised access.
Are there inspection holes for fuse monitoring?
Yes, self-closing inspection holes are provided in the cover for safe fuse monitoring.
Where can I find technical documentation and CAD models?
Technical information, mounting instructions, and CAD models are available for download on the product page.
| Manufacturer Part Number | 33724 |
|---|---|
| Barcode | 4021267337247 |
| Height | 670mm |
| Width | 50mm |
| Depth | 147mm |
| Alternative Product SKU | 33724000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Number of Poles | 3 pole |
| Device type | Protection switch separator |
| Max. rated operation voltage Ue AC | 400V |
| Rated permanent current Iu | 160A |
| Type of electrical connection of main circuit | Screw connection |
| Double interrupting | Yes |
| Construction size fuse insert | NH00 |
