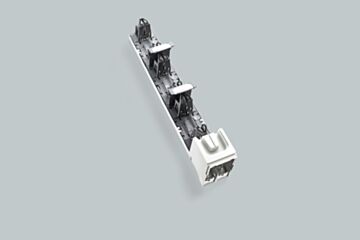

33706 Wohner NH in-line fuse base 250 A
MPN: 33706
Alt. SKU: 33706000A
Special Price
£211.00
£175.83
Regular Price
£263.75
Why Choose the NH In-line Fuse Base 250 A (33706)?
The NH in-line fuse base 250 A (Part No.: 33706 000A) is a reliable and robust mechanical component designed for secure fuse mounting within electrical systems. Its compatibility with various busbar sizes and halogen-free construction ensures both versatility and environmental safety. Manufactured to meet stringent quality standards, this fuse base is an essential part of the QUADRON 185Power system, providing dependable mechanical support without carrying current itself.
Key Benefits
- Designed for NH fuses up to 250 A, size 1, ensuring compatibility with standard fuse sizes.
- Suitable for busbars measuring 30, 40, 60, 80, 100, and 120 x 10 mm, offering flexible installation options.
- Constructed with halogen-free materials, promoting safer and more environmentally friendly installations.
- Equipped with M12 screws for secure and stable mounting.
- Part of the QUADRON 185Power system, ensuring system-wide compatibility and quality.
- Mechanical design means it does not carry current, enhancing safety during maintenance and installation.
- Approved under type number QU185-1-O, meeting recognised industry standards.
Technical Specifications
- Item number: 33706
- Description: NH in-line fuse base 250 A
- Dimensions (W x H x D): 100 x 670 x 173 mm
- Weight: 365.0 kg/100
- Halogen free: Yes
- Approval: type number: QU185-1-O
Frequently Asked Questions
What is the primary function of this NH in-line fuse base?
This fuse base provides a secure mechanical mounting point for NH fuses up to 250 A, size 1, ensuring proper fuse installation within electrical systems.
Can this fuse base carry electrical current?
No, as a mechanical component, the NH in-line fuse base does not carry current. It serves solely as a mounting and connection point for the fuse.
Is this product compatible with different busbar sizes?
Yes, it is designed to fit busbars of sizes 30, 40, 60, 80, 100, and 120 x 10 mm, providing versatile installation options.
Is the NH in-line fuse base environmentally friendly?
Yes, it is made from halogen-free materials, which reduces environmental impact and enhances safety.
Where can I find technical documentation and CAD models?
Technical information, mounting instructions, and CAD models are available through the provided download links from the manufacturer.
| Manufacturer Part Number | 33706 |
|---|---|
| Barcode | 4021267337063 |
| Height | 670mm |
| Width | 100mm |
| Depth | 173mm |
| Alternative Product SKU | 33706000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Number of Poles | 3 pole |
| Device type | Fuse base |
| Conditioned rated short-circuit current Iq | 50kA |
| Max. rated operation voltage Ue AC | 690VAC |
| Rated permanent current Iu | 250A |
| Construction size fuse insert | NH1 |
