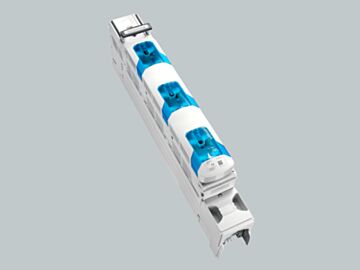

33634 Wohner NH in-line switch-disconnector-fuse size 3
MPN: 33634
Alt. SKU: 33634000A
Special Price
£1,063.44
£886.20
Regular Price
£1,329.29
Why Choose NH In-line Switch-Disconnector-Fuse Size 3 (33634)?
The NH in-line switch-disconnector-fuse size 3 (Part No.: 33634 000A) from disconnector offers a reliable mechanical switching solution designed for robust industrial applications. Featuring a double-breaking mechanism and operator independent switching with a snap-action mechanism, it ensures safe and efficient disconnection of circuits. Its compatibility with busbars ranging from 30 to 120 x 10 mm and bottom M12 connection makes it versatile for various system setups. Additionally, this product is halogen free, supporting environmentally conscious installations.
Key Benefits
- Mechanical design ensures safe disconnection without carrying current.
- Double-breaking mechanism enhances operational safety and reliability.
- Operator independent switching with snap-action mechanism for consistent performance.
- Compatible with multiple busbar sizes (30, 40, 60, 80, 100, 120 x 10 mm).
- Halogen free construction supports eco-friendly installations.
- Compact dimensions (100 x 781 x 274 mm) facilitate integration into existing systems.
- Approved under type number QS185-3, ensuring compliance with industry standards.
Technical Specifications
- Item number: 33634
- Description: NH in-line switch-disconnector-fuse size 3
- Dimensions (W x H x D): 100 x 781 x 274 mm
- Weight: 1421.0 kg/100
- Halogen free: Yes
- Approval: type number: QS185-3
Frequently Asked Questions
Does this switch-disconnector-fuse carry current?
No, as a mechanical product, the NH in-line switch-disconnector-fuse size 3 does not carry current itself but provides safe disconnection within electrical systems.
What busbar sizes is this product compatible with?
It is compatible with busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm.
Is this product environmentally friendly?
Yes, the product is halogen free, making it suitable for environmentally conscious installations.
Are there any accessories required for installation?
Yes, an accessory is required for busbar mounting to ensure proper installation and operation.
Where can I find technical and mounting documentation?
Technical information, mounting instructions, CAD models, and other documentation are available through the provided download links.
| Manufacturer Part Number | 33634 |
|---|---|
| Barcode | 4021267336349 |
| Height | 781mm |
| Width | 100mm |
| Depth | 274mm |
| Alternative Product SKU | 33634000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Number of Poles | 3 pole |
| Device type | Fuse switch disconnector |
| Max. rated operation voltage Ue AC | 800V |
| Rated permanent current Iu | 630A |
| Double interrupting | Yes |
| Construction size fuse insert | NH3 |
