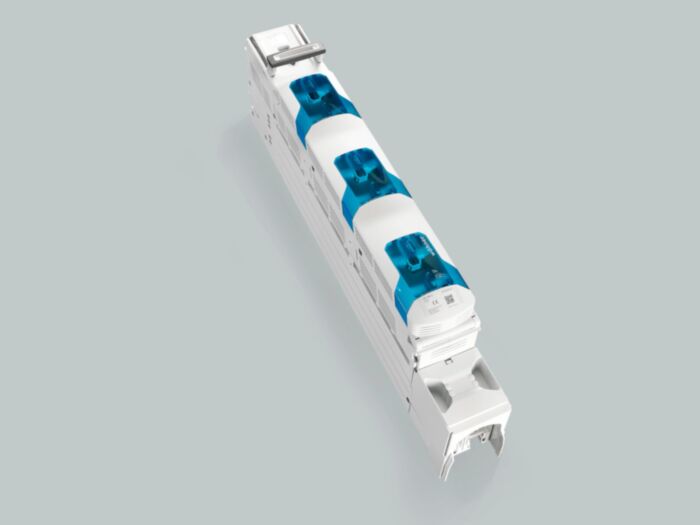

33632 Wohner NH in-line switch-disconnector-fuse size 2
MPN: 33632
Alt. SKU: 33632000A
Special Price
£967.44
£806.20
Regular Price
£1,209.31
Why Choose the NH In-line Switch-Disconnector-Fuse Size 2 (33632)?
The NH in-line switch-disconnector-fuse size 2 (Part No.: 33632 000A) from the 185Power System offers a robust mechanical solution for your electrical distribution needs. Designed for busbars ranging from 30 to 120 x 10 mm, it features a double-breaking mechanism and an operator-independent snap-action switching system, ensuring reliable and safe operation. Its halogen-free construction supports environmentally conscious installations, while the compact dimensions and bottom M12 connection facilitate easy integration into your setup. This product is ideal when a mechanical disconnection device is required that does not carry current itself but ensures secure isolation.
Key Benefits
- Reliable double-breaking mechanism for enhanced safety during switching operations.
- Operator-independent snap-action mechanism ensures consistent and secure switching.
- Compatible with a wide range of busbar sizes (30, 40, 60, 80, 100, 120 x 10 mm).
- Halogen-free materials promote safer and more environmentally friendly installations.
- Compact design with bottom M12 connection for straightforward mounting.
- Requires accessory for busbar mounting, allowing flexible installation options.
- Approved under type number QS185-2, ensuring compliance with industry standards.
Technical Specifications
- Item number: 33632
- Description: NH in-line switch-disconnector-fuse size 2
- Dimensions (W x H x D): 100 x 781 x 274 mm
- Weight: 1250.0 kg/100
- Halogen free: Yes
- Approval: type number: QS185-2
Frequently Asked Questions
Does this switch-disconnector-fuse carry electrical current?
No, as a mechanical switch-disconnector-fuse, it does not carry current itself but provides a safe mechanical isolation point within the electrical system.
What busbar sizes is this product compatible with?
The NH in-line switch-disconnector-fuse size 2 is compatible with busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm.
Is this product environmentally friendly?
Yes, it is constructed from halogen-free materials, supporting safer and more environmentally responsible installations.
Are accessories required for mounting?
Yes, accessories are required for busbar mounting to ensure proper installation and secure attachment.
Where can I find technical documentation and CAD models?
Technical information, mounting instructions, CAD models, and other documentation are available via the provided download links on the product page.
| Manufacturer Part Number | 33632 |
|---|---|
| Barcode | 4021267336325 |
| Height | 781mm |
| Width | 100mm |
| Depth | 274mm |
| Alternative Product SKU | 33632000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Number of Poles | 3 pole |
| Device type | Fuse switch disconnector |
| Max. rated operation voltage Ue AC | 690V |
| Rated permanent current Iu | 400A |
| Double interrupting | Yes |
| Construction size fuse insert | NH2 |
