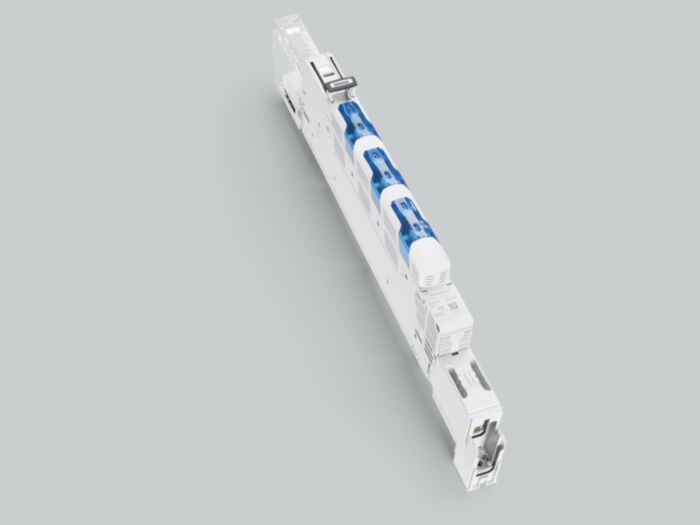

33620 Wohner NH in-line switch-disconnector-fuse size 00
MPN: 33620
Alt. SKU: 33620000A
Special Price
£782.81
£652.34
Regular Price
£978.52
Why Choose the NH In-line Switch-Disconnector-Fuse Size 00 (33620)?
The NH in-line switch-disconnector-fuse size 00 offers a reliable and efficient solution for your electrical system protection needs. Manufactured by Disconnector, this mechanical device is designed with a snap-action mechanism ensuring operator-independent switching for enhanced safety and performance. Its flat version with bottom M8 connection and compatibility with CrossLink protection modules make it a versatile choice for various busbar sizes. Additionally, it is halogen free, supporting environmentally conscious installations.
Key Benefits
- Operator independent switching with snap-action mechanism for safe and reliable operation.
- Compatible with busbars of sizes 30, 40, 60, 80, 100, and 120 x 10 mm, offering flexibility in system design.
- Flat version with bottom M8 connection facilitates easy installation and maintenance.
- Equipped with fuse monitoring to enhance system protection and fault detection.
- Suitable for integration with CrossLink protection modules, ensuring comprehensive system safety.
- Halogen free construction supports environmentally friendly applications.
- Mechanical device that does not carry current, ensuring safe disconnection and isolation.
Technical Specifications
- Item number: 33620
- Description: NH in-line switch-disconnector-fuse size 00
- Dimensions (W x H x D): 50 x 859 x 222 mm
- Weight: 449.0 kg/100
- Halogen free: Yes
- Approval: type number: QS185-00
Frequently Asked Questions
Is the NH in-line switch-disconnector-fuse suitable for all busbar sizes?
It is compatible with busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm.
Does this device carry electrical current?
No, as a mechanical switch-disconnector-fuse, it does not carry current but safely isolates circuits.
What type of connection does this device use?
This model features a flat version with a bottom M8 connection.
Is fuse monitoring included?
Yes, the device includes fuse monitoring for enhanced system protection.
Is the product environmentally friendly?
Yes, it is halogen free, supporting environmentally conscious installations.
| Manufacturer Part Number | 33620 |
|---|---|
| Barcode | 4021267336202 |
| Height | 859mm |
| Width | 50mm |
| Depth | 222mm |
| Alternative Product SKU | 33620000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Number of Poles | 3 pole |
| Device type | Fuse switch disconnector |
| Max. rated operation voltage Ue AC | 400V |
| Rated permanent current Iu | 160A |
| Double interrupting | Yes |
| Construction size fuse insert | NH00 |
