33402 Wohner busbar mounted fuse holder Class J
MPN: 33402
Alt. SKU: 33402000
Special Price
£157.85
£131.54
Regular Price
£197.32
Why Choose the Busbar Mounted Fuse Holder Class J (33402)?

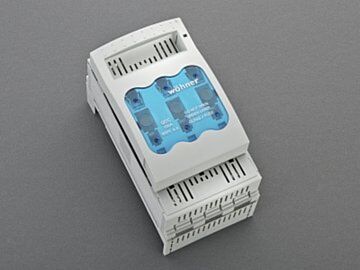

The busbar mounted fuse holder Class J (33402) is designed for reliable and safe electrical protection in industrial applications. It supports fuse links Class J rated from 70 to 100 A, ensuring compatibility with a wide range of systems. Its versatile connection options allow for top or bottom wiring, providing flexibility during installation. The product features UL approval, guaranteeing adherence to stringent safety and performance standards. Additionally, the innovative CrossLink® adapter technology enables fast and secure conversion of connections while maintaining shock protection on live parts.
Key Benefits
- Compatible with fuse links Class J 70 - 100 A (29 x 118 mm)
- Supports 3-pole configurations with box terminals
- Flexible connection options: top or bottom
- Suitable for busbars of various sizes: 12, 15, 20, 25, 30 x 5, 10 mm and section busbars
- UL approved under multiple categories ensuring high safety standards
- Shock-protected parts under voltage for enhanced user safety
- Simple and secure click-in installation and contact making
- Busbar supports allow stacking of flat busbars above each other
Technical Specifications
- Item number: 33402
- Description: busbar mounted fuse holder Class J
- Rated current: 100 A
- Rated voltage AC: 600 V
- Rated voltage DC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 106 x 200 x 135 mm
- Weight: 129.0 kg/100
- Halogen free: No
- Approval: UL 4248-8
- Approval: UL 4248-1
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: QCC-ClassJ100A
- Approval: UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com
- Approval: UL file 2: E123577, UL category+ (for USA): NMTR https://www.ul.com
- Approval: UL file: E230163, UL category (for Canada): IZLT8 https://www.ul.com
- Approval: UL file 2: E123577, UL category+ (for Canada): NMTR7 https://www.ul.com
Frequently Asked Questions
What fuse links are compatible with this fuse holder?
This fuse holder is compatible with Class J fuse links rated between 70 and 100 A with dimensions 29 x 118 mm.
Can the connection be made from both top and bottom?
Yes, the fuse holder allows connection either from the top or the bottom, providing installation flexibility.
Is this product halogen free?
No, this fuse holder is not halogen free.
Does this fuse holder carry current?
As a mechanical component designed to hold fuses, it does not carry current itself but facilitates safe current interruption through the fuse links.
What approvals does this product have?
It holds multiple UL approvals including UL 4248-8, UL 4248-1, and is listed for UL feeder circuits above 250 V under various UL categories for both USA and Canada.
| Manufacturer Part Number | 33402 |
|---|---|
| Barcode | 4021267334024 |
| Height | 200mm |
| Width | 106mm |
| Depth | 135mm |
| Alternative Product SKU | 33402000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
