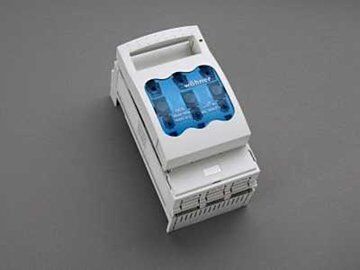

33398 Wohner NH fuse switch-disconnector size 00, 160 A
MPN: 33398
Alt. SKU: 33398000
Special Price
£82.72
£68.93
Regular Price
£103.39
Why Choose the NH Fuse Switch-Disconnector Size 00, 160 A (33398)?
The NH fuse switch-disconnector size 00, 160 A, offers a reliable and safe solution for electrical circuit protection and disconnection. Featuring innovative CrossLink® Technology, this device ensures fast and secure conversion of connections for top or bottom installation while maintaining shock protection for live parts. Its versatile compatibility with various busbar sizes and robust design make it an ideal choice for industrial electrical systems requiring high performance and safety standards.
Key Benefits
- CrossLink® Adapter Technology: Enables quick and safe switching of connection points without compromising shock protection.
- Shock Protection: Parts under voltage remain fully protected, ensuring operator safety during installation and maintenance.
- Flexible Connection Options: Suitable for connection from either top or bottom, enhancing installation versatility.
- Busbar Compatibility: Designed for busbars of 12, 15, 20, 25, 30 x 5, 10 mm and section busbars, supporting various system configurations.
- Robust Construction: Durable design compliant with UL 4248-1 and CCC certification for reliable operation in demanding environments.
- Easy Installation: Simple clicking mechanism for secure placement and contact, reducing installation time and effort.
Technical Specifications
- Item number: 33398
- Description: NH fuse switch-disconnector size 00, 160 A
- Rated current: 160 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 106 x 200 x 97 mm
- Weight: 103.0 kg/100
- Halogen free: No
- Approval: UL 4248-1
- Approval: for UL feeder circuits >250V
- Approval: type number: QCB-NH00
- Approval: UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com
- Approval: CCC certificate: 2010010302403934
Frequently Asked Questions
What is the primary function of this NH fuse switch-disconnector?
This device is designed to safely disconnect electrical circuits and protect them using NH fuses, ensuring reliable interruption of current in case of faults.
Does the switch-disconnector carry current mechanically?
As a mechanical switching device, it does not carry current itself but facilitates safe disconnection and fuse integration within the electrical system.
Can the connection be made from both top and bottom?
Yes, the CrossLink® adapter technology allows for fast and safe conversion of the connection for either top or bottom installation.
Is this product suitable for use with flat busbars?
Yes, busbar supports for flat busbars can be mounted above each other, providing flexibility in system design.
What certifications does this product have?
It holds UL 4248-1 approval, is certified for UL feeder circuits over 250V, and has a CCC certificate, ensuring compliance with international safety standards.
| Manufacturer Part Number | 33398 |
|---|---|
| Barcode | 4021267333980 |
| Height | 200mm |
| Width | 106mm |
| Depth | 97mm |
| Alternative Product SKU | 33398000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
