33329 Wohner NH fuse switch-disconnector size 00, 160 A, panel mounting
MPN: 33329
Alt. SKU: 33329000
Special Price
£253.52
£211.27
Regular Price
£316.91

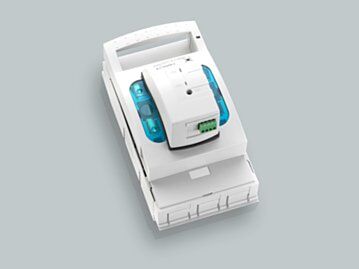

NH Fuse Switch-Disconnector Size 00, 160 A, Panel Mounting (33329)
Part No.: 33329 000 - QUADRON Panel
This NH fuse switch-disconnector is designed for panel mounting and rated at 160 A. It features screw M8 connections and includes electronic fuse monitoring for enhanced safety and reliability. Suitable for mounting plates within electrical panels, it ensures secure and efficient disconnection of circuits.
Why Choose This NH Fuse Switch-Disconnector?
- Reliable and safe connection of electrical lines with split shock protection.
- Self-closing inspection holes in the cover for easy and safe maintenance.
- Electronic fuse monitoring to detect fuse status and improve system safety.
- Robust construction suitable for panel mounting with standard screw M8 fixing.
- Complies with multiple international approvals including UL and CCC certifications.
Key Benefits
- Ensures high operational safety in electrical installations.
- Facilitates quick and safe inspection without removing the cover.
- Supports high short-circuit current rating (SCCR) of 100 kA.
- Compatible with 50 / 60 Hz frequency systems and up to 600 V AC voltage.
- Designed for easy integration into panel systems with standard dimensions.
Technical Specifications
- Item number: 33329
- Description: NH fuse switch-disconnector size 00, 160 A, panel mounting
- Rated current: 160 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 106 x 176 x 123 mm
- Weight: 92.0 kg/100
- Halogen free: No
- Approval: UL 4248-1
- Approval: for UL feeder circuits >250V
- Approval: type number: LTS-00
- Approval: UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com
- Approval: CCC certificate: 2004010302117250
Frequently Asked Questions
What is the primary function of this NH fuse switch-disconnector?
It is designed to safely disconnect electrical circuits and provide fuse protection with electronic monitoring for enhanced safety.
Can this switch-disconnector carry current directly?
This is a mechanical switch-disconnector with fuse integration; it is designed to interrupt current flow safely but does not itself carry current as a conductor.
Is it suitable for panel mounting?
Yes, it is specifically designed for mounting on panels using a mounting plate and screw M8 fixing.
Does it support electronic fuse monitoring?
Yes, this product includes electronic fuse monitoring to provide status information and improve safety.
What approvals does this product have?
It holds UL 4248-1 certification, is approved for UL feeder circuits above 250 V, has a CCC certificate, and carries a UL file number E230163.
| Manufacturer Part Number | 33329 |
|---|---|
| Barcode | 4021267333294 |
| Height | 176mm |
| Width | 106mm |
| Depth | 123mm |
| Alternative Product SKU | 33329000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
