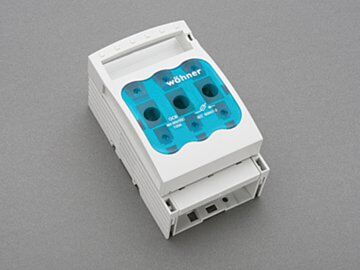

33217 Wohner NH fuse switch-disconnector size 000, 125 A, panel mounting
MPN: 33217
Alt. SKU: 33217000
Special Price
£44.76
£37.30
Regular Price
£55.96
Why Choose the NH Fuse Switch-Disconnector Size 000, 125 A, Panel Mounting (33217)?
This NH fuse switch-disconnector is designed for reliable and safe disconnection of electrical circuits in panel mounting applications. Rated at 125 A and suitable for voltages up to 600 V AC, it ensures optimal protection and operational safety. Its box terminal and mounting plate compatibility make installation straightforward and secure. The self-closing inspection holes in the cover provide added convenience for maintenance and inspection without compromising safety.
Key Benefits
- High rated current of 125 A for robust circuit protection.
- Compatible with 600 V AC systems operating at 50 / 60 Hz frequency.
- Panel mounting design with box terminal for easy and secure installation.
- Self-closing inspection holes enhance safety during inspection and maintenance.
- Multiple international approvals including UL and CCC certificates ensure compliance and reliability.
- Compact dimensions (89 x 143 x 75 mm) suitable for various panel configurations.
Technical Specifications
- Item number: 33217
- Description: NH fuse switch-disconnector size 000, 125 A, panel mounting
- Rated current: 125 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 89 x 143 x 75 mm
- Weight: 57.2 kg/100
- Halogen free: No
- Approval: UL 4248-1
- Approval: for UL feeder circuits >250V
- Approval: type number: LTS-000
- Approval: UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com
- Approval: CCC certificate: 2004010302117260
Frequently Asked Questions
What is the main function of this NH fuse switch-disconnector?
This device is used to safely disconnect electrical circuits and provide overcurrent protection by integrating fuse elements, ensuring safe maintenance and operation.
Can this switch-disconnector be used for DC applications?
This product is rated for AC voltages up to 600 V. There is no specified rating for DC voltage, so use in DC applications is not recommended without further consultation.
Does the switch-disconnector carry current mechanically?
As a mechanical switch-disconnector, it is designed to interrupt and isolate circuits but does not itself carry current like a fuse or breaker element.
Are there any special installation requirements?
The device is designed for panel mounting with a box terminal and mounting plate. Please refer to the mounting instructions for detailed installation guidelines.
Where can I find technical documentation and CAD models?
Technical information, mounting instructions, CAD models, and conformity declarations are available for download from the manufacturer's website.
| Manufacturer Part Number | 33217 |
|---|---|
| Barcode | 4021267332174 |
| Height | 143mm |
| Width | 89mm |
| Depth | 75mm |
| Alternative Product SKU | 33217000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
