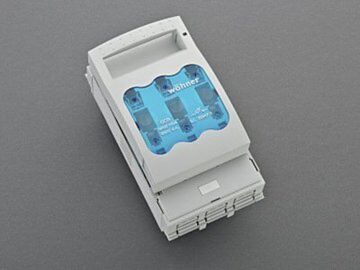

33075 Wohner NH fuse-switch-disconnector size 00, 160 A
MPN: 33075
Alt. SKU: 33075000
Special Price
£94.74
£78.95
Regular Price
£118.42
Why Choose the NH Fuse-Switch-Disconnector Size 00, 160 A (33075)?
The NH fuse-switch-disconnector size 00, rated at 160 A, is designed for reliable and safe electrical circuit protection in demanding industrial environments. Manufactured by Switch, this device incorporates advanced CrossLink® Technology, enabling fast and secure conversion of connections for top or bottom installation while maintaining shock protection for live parts. Its compatibility with 5-pole systems and various busbar sizes ensures versatile application. With approvals including UL 4248-1 and CCC certification, it meets stringent safety and quality standards.
Key Benefits
- Fast and safe connection conversion for top or bottom terminals using CrossLink® adapter technology.
- Shock protection split into two parts for enhanced user safety during operation.
- Simple and secure clicking mechanism ensures reliable contact and easy installation.
- Supports mounting of flat busbars above each other with dedicated busbar supports.
- Suitable for busbars of multiple sizes: 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
- Designed for use in 5-pole systems, providing flexibility in electrical distribution setups.
- Complies with international standards and certifications, ensuring dependable performance.
Technical Specifications
- Item number: 33075
- Description: NH fuse-switch-disconnector size 00, 160 A
- Rated current: 160 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 106 x 200 x 97 mm
- Weight: 100.0 kg/100
- Halogen free: No
- Approval: UL 4248-1
- Approval: for UL feeder circuits >250V
- Approval: type number: QCB-NH00
- Approval: UL file: E230163, UL category (for USA): IZLT2 https://www.ul.com
- Approval: CCC certificate: 2010010302403934
Frequently Asked Questions
Does this fuse-switch-disconnector carry current?
Yes, this is an electrical device designed to carry current up to its rated capacity of 160 A.
Can the connection be made from both top and bottom?
Yes, the NH fuse-switch-disconnector features CrossLink® adapter technology allowing connection from either the top or bottom.
Is this product suitable for use with flat busbars?
Yes, it supports busbars sized 12, 15, 20, 25, 30 x 5, 10 mm and section busbars, with busbar supports that can be mounted above each other.
What certifications does this product have?
It holds UL 4248-1 certification, is approved for UL feeder circuits over 250V, and has a CCC certificate among others.
Is this product halogen free?
No, this product is not halogen free.
| Manufacturer Part Number | 33075 |
|---|---|
| Barcode | 4021267330750 |
| Height | 200mm |
| Width | 106mm |
| Depth | 97mm |
| Alternative Product SKU | 33075000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
