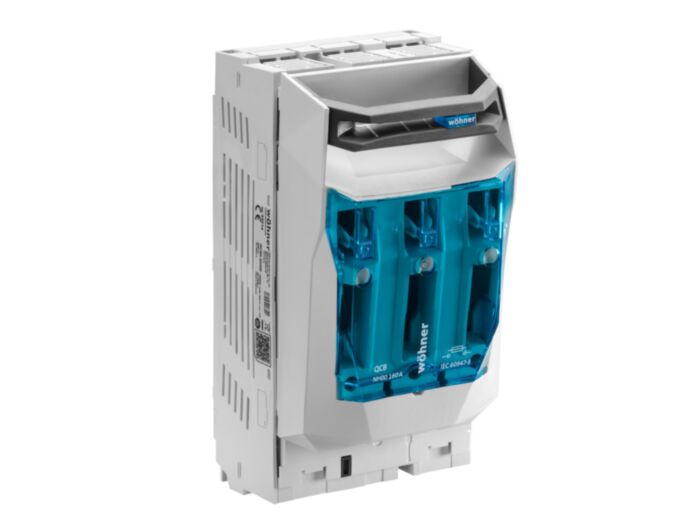

33014000A Woehner 3 pole 160A Nh Fuse Switch Disconnector Size 00
MPN: 33014
Alt. SKU: 33014000A
Special Price
£49.13
£40.94
Regular Price
£61.40
Why Choose the Wöhner 33014 CrossBoard® Adapter?
The Wöhner 33014 is a precision CrossBoard® adapter designed for the secure and efficient integration of modular switching and protection devices into the CrossBoard® busbar system. It enables rapid installation while ensuring reliable electrical contact and stable mechanical mounting within compact power distribution assemblies.
Engineered for industrial panel builders and OEM manufacturers, the 33014 supports streamlined assembly, reduced wiring effort and scalable distribution architecture. Its robust construction ensures dependable long-term performance in demanding industrial and commercial environments.
Key Features
- CrossBoard® adapter for modular device integration.
- Provides secure electrical contact with the busbar system.
- Stable mechanical fixing for industrial installations.
- Compact footprint for high-density switchgear panels.
- Supports modular and scalable power distribution design.
- Suitable for industrial and commercial assemblies.
Technical Specifications
- Manufacturer: Wöhner
- Model: 33014
- MPN: 33014000A
- Product type: CrossBoard® adapter
- System compatibility: CrossBoard®
- Application: Modular switching and protection devices
- Mounting type: Direct integration onto CrossBoard®
- Compliance: Suitable for IEC and UL assemblies when used within approved systems
- EAN: 4021267330146
Typical Applications
- Mounting miniature circuit breakers and modular protection devices onto CrossBoard®.
- Industrial distribution boards and switchgear systems.
- OEM control cabinets requiring compact and modular busbar solutions.
- Commercial installations using scalable CrossBoard® architecture.
Frequently Asked Questions
What is the Wöhner 33014 used for?
The 33014 is a CrossBoard® adapter used to mount modular switching and protection devices directly onto the busbar system.
Which system is it compatible with?
It is specifically designed for the Wöhner CrossBoard® busbar system.
Does it provide electrical contact with the busbar?
Yes. The adapter ensures secure and reliable electrical connection within the CrossBoard® assembly.
Is it suitable for industrial panel building?
Yes. It is intended for industrial and commercial switchgear assemblies built to IEC and UL standards when used within approved systems.
Can it support system expansion?
Yes. The modular CrossBoard® concept allows straightforward expansion and reconfiguration as distribution requirements evolve.
| Manufacturer Part Number | 33014 |
|---|---|
| Barcode | 4021267330149 |
| Height | 200mm |
| Width | 200mm |
| Depth | 110mm |
| Country of Manufacture | Germany |
| HS Code | 85361090 |
| Alternative Product SKU | 33014000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Range | Crossboard |
| Number of Poles | 3 pole |
| Cable Entry | Top/bottom |
| Max. rated operation voltage Ue AC | 690V |
| Type of control element | Cover grip |
| Rated permanent current Iu | 160A |
| Halogen free | Yes |
| Rated voltage | 690V |
| Rated current | 160A |
| Degree of protection (IP), front side | IP30 |
| Max. rated operation current Ie | 160A |
| Type of electrical connection of main circuit | Frame clamp |
| Rated surge voltage | 6kV |
| Suitable for fuses | NH000, NH00 |
| Rated Isolation Voltage Ui AC | 800V |
| Min. Cross Section | 1.5 mm² |
| Max. Cross Section | 70 mm² |
