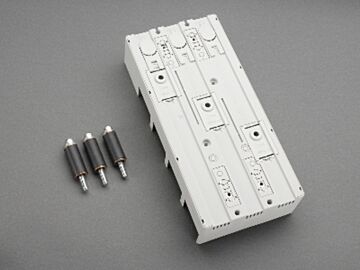

32978 Wohner busbar adapter 630 A, 3-pole
MPN: 32978
Alt. SKU: 32978000
Special Price
£188.86
£157.38
Regular Price
£236.08
Why Choose the Busbar Adapter 630 A, 3-pole (32978)?
The busbar adapter 630 A, 3-pole (Part No. 32978) is designed for seamless integration with Eaton NZM3-XKR13O and NZM3-XKR13U circuit breakers. It supports busbars of various sizes, including 12, 15, 20, 25, 30 x 5, 10 mm and section busbars, making it highly versatile for different electrical system configurations. Its robust construction and compliance with multiple international approvals ensure reliable performance in demanding industrial environments.
Key Benefits
- Supports a rated current of 630 A and rated voltage of 600 V AC, suitable for medium power applications.
- Compatible with both top and bottom system connections for flexible installation.
- Designed for use with Eaton NZM3-XKR13O and NZM3-XKR13U circuit breakers, ensuring system compatibility.
- Meets stringent safety and quality standards with approvals including UL 508, CSA, UL, and DNV GL.
- Mechanical product that does not carry current directly, ensuring safe and reliable busbar connection.
- Comprehensive documentation and CAD models available to support design and installation processes.
Technical Specifications
- Item number: 32978
- Description: busbar adapter 630 A, 3-pole
- Rated current: 630 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 140 x 300 x 63 mm
- Weight: 250.0 kg/100
- Halogen free: No
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EPC60630-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What is the primary function of this busbar adapter?
This busbar adapter mechanically connects busbars to Eaton NZM3-XKR13O and NZM3-XKR13U circuit breakers, enabling flexible system configurations without carrying current itself.
Is this adapter suitable for both AC and DC systems?
The adapter is rated for AC voltage up to 600 V at 50/60 Hz. DC voltage rating is not specified, so it is recommended to use it within its AC rating parameters.
Does this product comply with international safety standards?
Yes, it holds multiple approvals including UL 508, CSA, UL, and DNV GL, ensuring compliance with recognised safety and quality standards.
Are installation instructions and CAD models available?
Yes, detailed mounting instructions and CAD models in various formats are available for download to assist with installation and design.
| Manufacturer Part Number | 32978 |
|---|---|
| Barcode | 4021267329785 |
| Height | 300mm |
| Width | 140mm |
| Depth | 63mm |
| Alternative Product SKU | 32978000 |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
