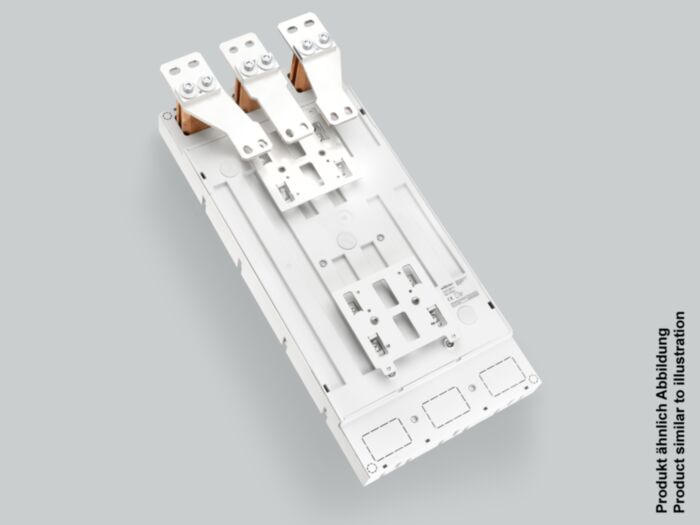

32781 Wohner busbar adapter 1200 A
MPN: 32781
Alt. SKU: 32781000A
Special Price
£1,355.88
£1,129.90
Regular Price
£1,694.86
Why Choose the Busbar Adapter 1200 A (32781)?
The busbar adapter 1200 A (part number 32781) is designed for reliable and efficient connection in electrical distribution systems. It is tailored for Eaton NZM4 circuit breakers rated at 1250 A and compatible with busbars of various sizes, ensuring versatile application. Its screw connection with top and bottom terminals facilitates secure and straightforward installation. The adapter is halogen-free, supporting environmentally conscious installations, and carries multiple UL approvals, confirming its compliance with stringent safety standards.
Key Benefits
- High current rating of 1200 A suitable for demanding electrical systems.
- Compatible with a wide range of busbar sizes (30, 40, 60, 80, 100, 120 x 10 mm).
- Screw connection on both top and bottom for secure and flexible installation.
- Halogen-free construction promotes safer and eco-friendly use.
- Multiple UL approvals ensure compliance with North American safety standards.
- Designed specifically for Eaton NZM4 (1250 A) breakers for seamless integration.
- Not suitable for systems with CrossLink protection modules, ensuring correct application.
Technical Specifications
- Item number: 32781
- Description: busbar adapter 1200 A
- Rated current: 1200 A
- Rated voltage AC: 1000 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 300 x 652 x 85 mm
- Weight: 2600.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: EQ185-A1600-S
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar adapter suitable for all busbar sizes?
This adapter is compatible with busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm. It is important to verify compatibility with your specific busbar dimensions before installation.
Can this adapter be used with CrossLink protection modules?
No, the busbar adapter 1200 A (32781) is not suitable for systems with CrossLink protection modules.
Does the busbar adapter carry current?
Yes, this is an electrical busbar adapter designed to carry current up to 1200 A.
What approvals does this product have?
The adapter holds UL 508 and UL approvals, including certifications for feeder circuits over 250 V in the USA and Canada. CCC approval is not required.
Is the product environmentally friendly?
Yes, the busbar adapter is halogen-free, supporting safer and more environmentally responsible installations.
| Manufacturer Part Number | 32781 |
|---|---|
| Barcode | 4021267327811 |
| Height | 652mm |
| Width | 300mm |
| Depth | 85mm |
| Alternative Product SKU | 32781000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 185mm |
| Rated current In | 1200A |
| Min. busbar thickness | 10mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 300mm |
