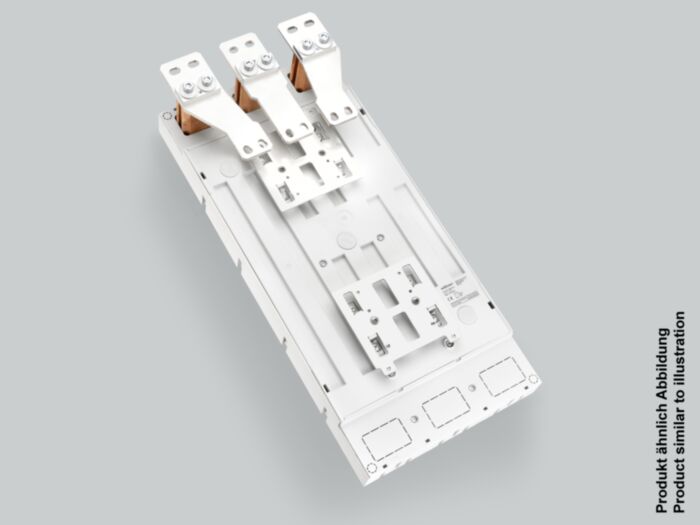

32780 Wohner busbar adapter 1400 A

Why Choose the Busbar Adapter 1400 A (32780)?

The busbar adapter 1400 A (part number 32780) is designed for reliable and efficient electrical connections in high-current applications. Compatible with Eaton NZM4 (1600 A) and Siemens 3VL8 (1600 A) circuit breakers, it supports busbars ranging from 30 to 120 mm in width and 10 mm in thickness. This adapter features screw connections on both top and bottom for secure installation and is halogen-free, ensuring safety and environmental compliance. It is UL approved for feeder circuits above 250 V, providing peace of mind for industrial electrical systems.

Key Benefits

• Supports rated current of 1200 A and voltage up to 1000 V AC, suitable for demanding electrical systems.
• Compatible with multiple busbar sizes (30, 40, 60, 80, 100, 120 x 10 mm) for versatile installation options.
• Screw connection on top and bottom ensures robust and secure electrical connections.
• Halogen-free construction enhances safety and environmental friendliness.
• UL 508 and other UL approvals guarantee compliance with stringent safety standards.
• Not suitable for systems with CrossLink protection modules, ensuring correct application and system integrity.
• Mechanical product that does not carry current itself but facilitates safe and efficient current transfer between busbars and devices.

Technical Specifications

• Item number: 32780
• Description: busbar adapter 1400 A
• Rated current: 1200 A
• Rated voltage AC: 1000 V
• Rated frequency: 50 / 60 Hz
• Dimensions (W x H x D): 300 x 652 x 85 mm
• Weight: 2950.0 kg/100
• Halogen free: Yes
• Approval: UL 508
• Approval: UL
• Approval: for UL feeder circuits >250V
• Approval: type number: EQ185-A1600-S
• Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
• Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
• Approval: CCC approval: no certification required
