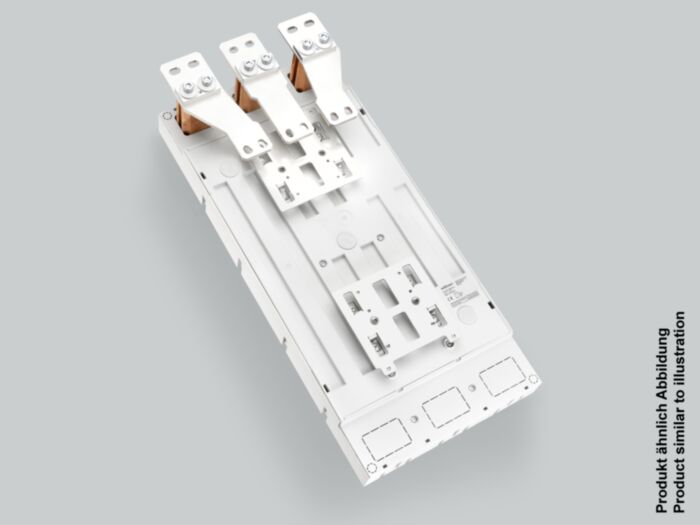

32779 Wohner busbar adapter 1000 A
MPN: 32779
Alt. SKU: 32779000A
Special Price
£1,074.06
£895.05
Regular Price
£1,342.58
Why Choose the Busbar Adapter 1000 A (32779)?
The busbar adapter 1000 A (part number 32779) is designed for reliable and efficient electrical connections within power distribution systems. Compatible with Eaton NZM4 circuit breakers rated at 630 A, 800 A, and 1000 A, this adapter supports busbars ranging from 30 to 120 mm width and 10 mm thickness. Its screw connection design allows for secure top and bottom connections, ensuring stable and durable installation. The adapter is halogen-free, contributing to safer and more environmentally friendly applications. Additionally, it carries multiple UL approvals, making it suitable for use in North American markets.
Key Benefits
- Supports a rated current of 800 A and rated voltage of 1000 V AC, suitable for demanding electrical systems.
- Compatible with Eaton NZM4 circuit breakers for seamless integration.
- Designed for busbars of various sizes (30, 40, 60, 80, 100, 120 x 10 mm), offering flexibility in system design.
- Screw connection on both top and bottom ensures secure and reliable electrical contact.
- Halogen-free construction enhances safety and environmental compliance.
- UL 508 and other UL approvals guarantee compliance with stringent safety standards.
- Not suitable for systems with CrossLink protection modules, ensuring correct application.
Technical Specifications
- Item number: 32779
- Description: busbar adapter 1000 A
- Rated current: 800 A
- Rated voltage AC: 1000 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 300 x 652 x 85 mm
- Weight: 2200.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: EQ185-A1000-S
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar adapter suitable for systems with CrossLink protection modules?
No, this busbar adapter is not suitable for systems that use CrossLink protection modules.
What types of busbars can be connected using this adapter?
The adapter supports busbars with dimensions of 30, 40, 60, 80, 100, and 120 mm width by 10 mm thickness.
Does the busbar adapter carry current itself?
As a mechanical adapter, it facilitates connection but does not carry current on its own; it ensures secure electrical contact between busbars and circuit breakers.
What approvals does this product have?
It is approved under UL 508, UL for feeder circuits over 250V, and holds specific UL file numbers for USA and Canada. No CCC certification is required.
| Manufacturer Part Number | 32779 |
|---|---|
| Barcode | 4021267327798 |
| Height | 652mm |
| Width | 300mm |
| Depth | 85mm |
| Alternative Product SKU | 32779000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 185mm |
| Rated current In | 1000A |
| Min. busbar thickness | 10mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 300mm |
