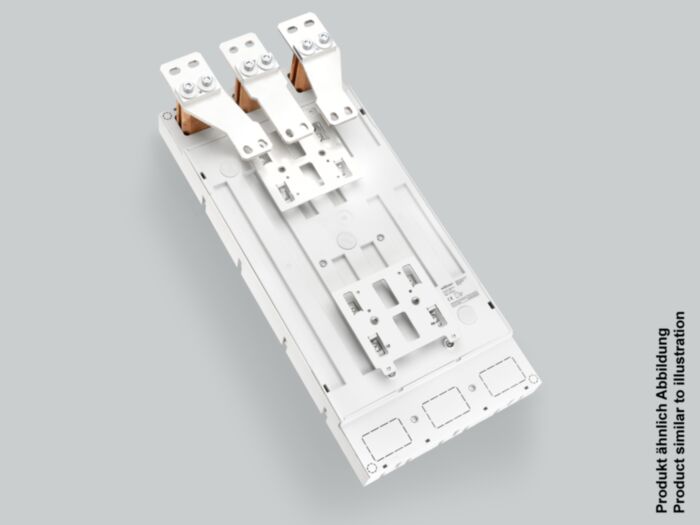

32777 Wohner busbar adapter 900 A
MPN: 32777
Alt. SKU: 32777000A
Special Price
£1,074.06
£895.05
Regular Price
£1,342.58
Why Choose the Busbar Adapter 900 A (32777)?
The busbar adapter 900 A (Part No.: 32777 000A) is designed for reliable and efficient electrical connections in industrial environments. Compatible with Schneider Electric Compact NS630B, NS800, NS1000, and CompPacT NS800, NS1000 systems, this adapter supports busbars ranging from 30 to 120 x 10 mm. Its screw connection with top and bottom access ensures secure installation. The product is halogen-free, meeting modern safety and environmental standards, and carries multiple UL approvals for peace of mind in various applications.
Key Benefits
- High current rating of 800 A suitable for demanding electrical systems.
- Compatible with a wide range of Schneider Electric Compact and CompPacT systems.
- Supports multiple busbar sizes for flexible installation options.
- Halogen-free construction enhances safety and environmental compliance.
- Multiple UL certifications ensure compliance with North American standards.
- Mechanical product that does not carry current itself, ensuring safe and reliable busbar connections.
- Easy screw connection design with top and bottom access for straightforward installation.
Technical Specifications
- Item number: 32777
- Description: busbar adapter 900 A
- Rated current: 800 A
- Rated voltage AC: 1000 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 300 x 652 x 85 mm
- Weight: 2200.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: EQ185-A1000-S
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar adapter suitable for use with CrossLink protection modules?
No, this busbar adapter is not suitable for systems with CrossLink protection modules.
What busbar sizes are compatible with this adapter?
The adapter supports busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm.
Does this adapter carry current directly?
No, as a mechanical adapter, it does not carry current itself but facilitates secure busbar connections.
Are there CAD files available for design integration?
Yes, 3D PDF, 3D STP, and 2D DXF CAD models are available for download to assist with design and installation planning.
| Manufacturer Part Number | 32777 |
|---|---|
| Barcode | 4021267327774 |
| Height | 652mm |
| Width | 300mm |
| Depth | 85mm |
| Alternative Product SKU | 32777000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 185mm |
| Rated current In | 900A |
| Min. busbar thickness | 10mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 300mm |
