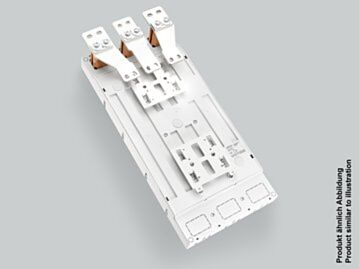

32775 Wohner busbar adapter 1400 A
MPN: 32775
Alt. SKU: 32775000A
Special Price
£1,327.97
£1,106.64
Regular Price
£1,659.97
Why Choose the Busbar Adapter 1480 A (32775)?
The busbar adapter 1480 A (Part No. 32775 000A) is designed for robust and reliable electrical connections within Schneider Electric Compact NS1600 and ComPacT NS 1600 systems. Its screw connection design with top and bottom connectivity ensures secure and efficient installation. Compatible with busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm, this adapter is halogen-free and meets stringent UL approvals, making it a dependable choice for industrial electrical applications. Please note, as a mechanical product, this busbar adapter does not carry current itself but facilitates safe and effective current transfer between busbars.
Key Benefits
- High compatibility with Schneider Electric Compact NS1600 and ComPacT NS 1600 circuit breakers.
- Supports multiple busbar sizes for versatile installation options.
- Secure screw connection on both top and bottom for reliable mechanical stability.
- Halogen-free construction promotes environmental safety and reduces toxic emissions in case of fire.
- Complies with UL 508 standards and is approved for UL feeder circuits over 250 V, ensuring safety and quality.
- Not suitable for systems with CrossLink protection modules, ensuring correct application and system integrity.
Technical Specifications
- Item number: 32775
- Description: busbar adapter 1480 A
- Rated current: 1200 A
- Rated voltage AC: 1000 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 300 x 652 x 85 mm
- Weight: 3010.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: EQ185-A1600-S
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is this busbar adapter suitable for use with CrossLink protection modules?
No, the busbar adapter 1480 A (32775) is not suitable for systems with CrossLink protection modules.
What busbar sizes are compatible with this adapter?
This adapter supports busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm.
Does the busbar adapter carry current?
No, this is a mechanical adapter designed to connect busbars; it does not carry current itself.
What approvals does this product have?
The busbar adapter is UL 508 approved, suitable for UL feeder circuits over 250 V, and carries UL file certifications for both the USA and Canada. No CCC certification is required.
Is the product environmentally safe?
Yes, it is halogen-free, reducing harmful emissions in the event of fire.
| Manufacturer Part Number | 32775 |
|---|---|
| Barcode | 4021267327750 |
| Height | 652mm |
| Width | 300mm |
| Depth | 85mm |
| Alternative Product SKU | 32775000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 185mm |
| Rated current In | 1480A |
| Min. busbar thickness | 10mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 300mm |
