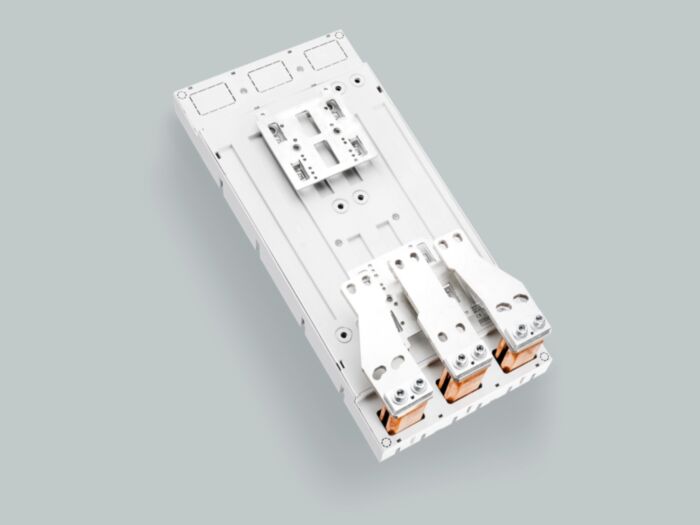

32772 Wohner busbar adapter 1150 A

Why Choose the Wöhner EQUES®185Power Busbar Adapter (SKU: 32772)?

The Wöhner EQUES® 185 Power Busbar Adapter (SKU: 32772) is a high-current component engineered for safely mounting and connecting circuit breakers to a 185 mm busbar system. Rated for 1150 A, this adapter is specifically designed to integrate a Siemens 3VL7 (1250 A) circuit breaker, providing a secure and reliable power connection in demanding industrial applications. Its robust construction and compatibility with the 185Power system make it an essential component for efficient and space-saving low-voltage distribution.

Key Takeaways

• Rated for a nominal current of 1150 A.
• Designed for seamless integration with the Wöhner 185Power busbar system.
• Specifically accommodates Siemens 3VL7 (1250 A) circuit breakers.
• Allows for secure, direct connection to a wide range of busbar sizes.
• Enables quick and cost-efficient realization of high-current, low-voltage distribution systems.

Frequently Asked Questions About the Wöhner 32772 Adapter

• What is the primary function of the Wöhner 32772 adapter?
• Which specific circuit breaker is the 32772 compatible with?
• What busbar sizes can this adapter be used with?
• What is the maximum current rating of the Wöhner 32772?
• What busbar system is this adapter a part of?

Wöhner 32772 EQUES®185Power Adapter Overview

The Wöhner 32772 is a specialized busbar adapter within the EQUES®185Power family, designed to provide a standardized mounting and connection point for high-current circuit breakers. Its primary role is to bridge the gap between a main busbar system and a protective device, ensuring mechanical stability and electrical integrity. This adapter simplifies the construction of power distribution panels by allowing for the direct and secure screw connection of a Siemens 3VL7 breaker, with connection terminals located at the top and bottom for straightforward wiring.

Efficiency & Safety Benefits

• Simplified Integration: The EQUES® system allows for easy integration of large circuit breakers into a standardized busbar setup.
• Space Saving: The modular design contributes to more compact and clearly organized power distribution cabinets.
• Secure Connection: Provides a robust, bolted connection, ensuring reliable performance in high-vibration and high-current environments.
• System Compatibility: As part of the 185Power system, it works seamlessly with other components like covers and connectors for a complete, touch-safe installation.

Key Features of the Wöhner 32772 Busbar Adapter

• Product Type: EQUES®185Power Busbar Adapter
• Part Number: 32772
• Rated Current: 1150 A
• Compatible Circuit Breaker: Siemens 3VL7 (1250 A)
• Busbar Compatibility: Fits bars with dimensions of 30, 40, 60, 80, 100, or 120 mm width and 10 mm thickness
• Connection Type: Screw connection
• Terminal Location: Top / Bottom
• System Family: 185Power (185 mm busbar center-to-center spacing)

Choose the Wöhner 32772 EQUES®185Power Busbar Adapter for secure and efficient integration of high-current circuit breakers in professional power distribution systems.
