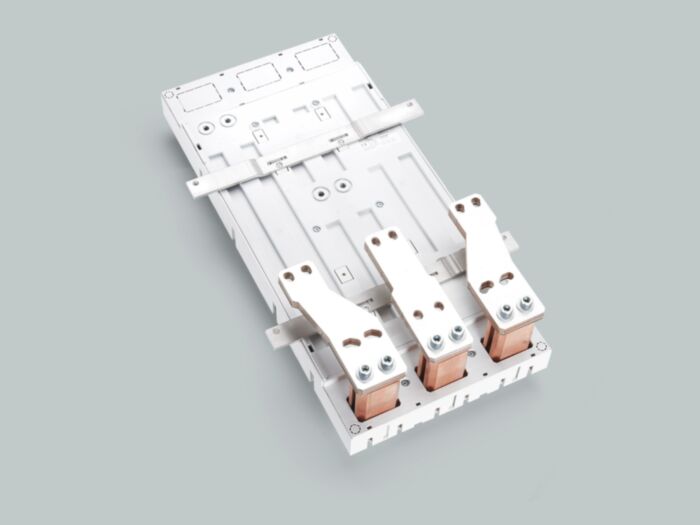

32764 Wohner busbar adapter 1500A
MPN: 32764
Alt. SKU: 32764000A
Special Price
£965.06
£804.22
Regular Price
£1,206.34
Why Choose the Busbar Adapter 1500A (32764)?
The Busbar Adapter 1500A (32764) is designed to provide a reliable and efficient connection solution for busbars in high-current electrical systems. Compatible with Socomec Sirco 1250 A and 1600 A models, this adapter supports busbars of various sizes, ensuring versatile application. Its halogen-free construction enhances safety and environmental compliance, while multiple UL approvals guarantee adherence to stringent quality and safety standards.
Key Benefits
- Supports rated current up to 1200 A and voltage up to 1000 V AC, suitable for demanding electrical installations.
- Compatible with a range of busbar sizes (30, 40, 60, 80, 100, 120 x 10 mm) for flexible integration.
- Halogen-free material enhances fire safety and reduces toxic emissions.
- Multiple UL certifications ensure compliance with North American safety standards.
- Mechanical product that does not carry current directly but facilitates secure busbar connections.
- Robust dimensions (300 x 652 x 76 mm) and weight provide stability and durability in installation.
Technical Specifications
- Item number: 32764
- Description: busbar adapter 1500A
- Rated current: 1200 A
- Rated voltage AC: 1000 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 300 x 652 x 76 mm
- Weight: 3350.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: EQ185-A1600-C
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
This busbar adapter supports busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm.
Is this product suitable for direct current (DC) applications?
The rated voltage for DC is not specified; it is primarily designed for AC applications up to 1000 V.
Does the busbar adapter carry electrical current?
No, this is a mechanical adapter designed to facilitate connections between busbars and does not carry current itself.
What approvals does this product have?
It holds UL 508 certification, is approved for UL feeder circuits above 250 V, and has specific UL file numbers for USA and Canada. CCC approval is not required.
Is the product environmentally safe?
Yes, it is halogen-free, reducing environmental impact and enhancing fire safety.
| Manufacturer Part Number | 32764 |
|---|---|
| Barcode | 4021267327644 |
| Height | 652mm |
| Width | 300mm |
| Depth | 76mm |
| Alternative Product SKU | 32764000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 185mm |
| Rated current In | 1500A |
| Min. busbar thickness | 10mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 300mm |
