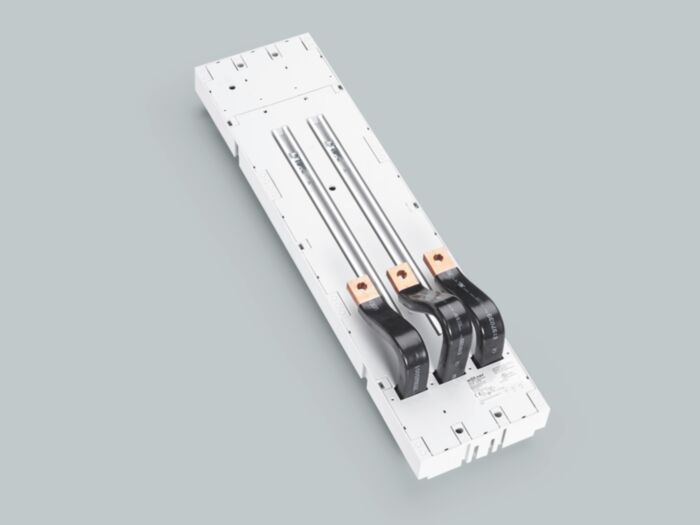

32746 Wohner busbar adapter 630 A
MPN: 32746
Alt. SKU: 32746000A
Special Price
£809.40
£674.50
Regular Price
£1,011.74
Why Choose the Busbar Adapter 630 A (32746)?
The busbar adapter 630 A (part number 32746) is a versatile and reliable solution designed for universal use up to 630 A with a phase distance of 43-46 mm. Featuring a flat clamp connection at the bottom, it supports busbars of various sizes including 30, 40, 60, 80, 100, and 120 x 10 mm. This adapter is halogen-free, ensuring safer environmental and operational conditions. Certified with UL 508 and other UL approvals, it meets stringent safety standards for feeder circuits above 250 V. Its robust construction and compatibility with the 185Power system make it an ideal choice for industrial electrical installations requiring dependable busbar connections.
Key Benefits
- Universal compatibility with multiple busbar sizes for flexible installation.
- Flat clamp connection ensures secure and stable electrical contact.
- Halogen-free design promotes safer working environments and reduces toxic emissions.
- Certified to UL 508 and other UL standards for guaranteed safety and quality.
- Supports high rated current of 630 A and voltages up to 1000 V AC/DC.
- Suitable for use with UL feeder circuits greater than 250 V.
- Robust dimensions and weight ensure durability in demanding industrial settings.
Technical Specifications
- Item number: 32746
- Description: busbar adapter 630 A
- Rated current: 630 A
- Rated voltage AC: 1000 V
- Rated voltage DC: 1000 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 150 x 585 x 47 mm
- Weight: 700.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: EQ185-A630-C
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
The busbar adapter supports busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm.
Is this adapter suitable for direct current applications?
Yes, it is rated for DC voltages up to 1000 V.
Does this busbar adapter carry current?
Yes, as an electrical busbar adapter, it is designed to carry current up to 630 A.
Is the product environmentally friendly?
Yes, it is halogen-free, which reduces harmful emissions in case of fire.
What approvals does this product have?
It is approved under UL 508, UL for feeder circuits above 250 V, and carries UL file certifications for USA and Canada. No CCC certification is required.
| Manufacturer Part Number | 32746 |
|---|---|
| Barcode | 4021267327460 |
| Height | 585mm |
| Width | 150mm |
| Depth | 47mm |
| Alternative Product SKU | 32746000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 185mm |
| Rated current In | 630A |
| Min. busbar thickness | 10mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 150mm |
