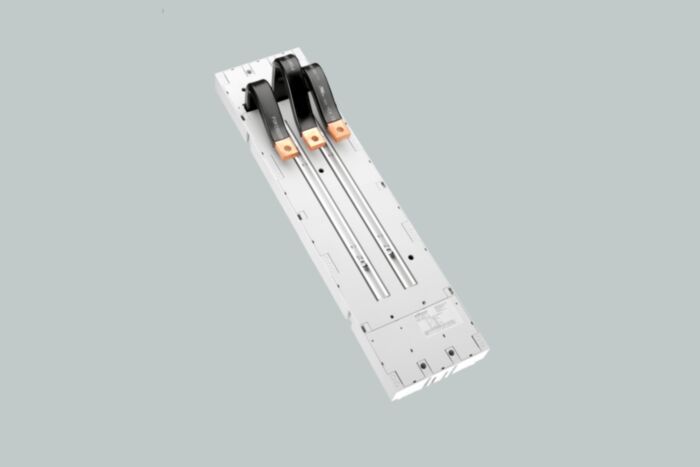

32742 Wohner busbar adapter 630 A
MPN: 32742
Alt. SKU: 32742000A
Special Price
£809.40
£674.50
Regular Price
£1,011.74
Why Choose the Busbar Adapter 630 A (32742)?
The busbar adapter 630 A (Part No.: 32742 000A) is a versatile and reliable solution designed for universal use up to 630 A with a phase distance of 43-46 mm. It features a top connection with a flat clamp connection, suitable for busbars of various sizes including 30, 40, 60, 80, 100, and 120 x 10 mm. This adapter is part of the 185Power system, ensuring compatibility and ease of integration within your electrical installations.
Constructed to meet stringent safety standards, it is halogen-free and carries multiple UL approvals for both the USA and Canada, making it a trusted choice for industrial electrical applications. The busbar adapter does not carry current itself but serves as a mechanical connection facilitating secure and efficient busbar linking.
Key Benefits
- Universal compatibility with busbars from 30 to 120 mm width and 10 mm thickness
- Supports rated current up to 630 A and rated voltage up to 1000 V AC/DC
- Flat clamp connection at the top for easy and secure installation
- Halogen-free material ensuring environmental safety
- Complies with UL 508 and other UL approvals for feeder circuits above 250 V
- Robust design with dimensions 150 x 585 x 47 mm and weight of 640.0 kg/100
- Compatible with 50/60 Hz frequency systems
- Part of the trusted 185Power system for seamless integration
Technical Specifications
- Item number: 32742
- Description: busbar adapter 630 A
- Rated current: 630 A
- Rated voltage AC: 1000 V
- Rated voltage DC: 1000 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 150 x 585 x 47 mm
- Weight: 640.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: EQ185-A630-C
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
The adapter is compatible with busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm.
Does the busbar adapter carry current?
No, this busbar adapter is a mechanical component and does not carry current itself. It facilitates secure connections between busbars.
Is the adapter suitable for both AC and DC applications?
Yes, it supports rated voltages up to 1000 V for both AC and DC applications.
What approvals does this product have?
It holds UL 508 approval, UL certification for feeder circuits above 250 V, and specific UL files for USA and Canada. CCC approval is not required.
Is the product environmentally safe?
Yes, the busbar adapter is halogen-free, ensuring it meets environmental safety standards.
| Manufacturer Part Number | 32742 |
|---|---|
| Barcode | 4021267327422 |
| Height | 585mm |
| Width | 150mm |
| Depth | 47mm |
| Alternative Product SKU | 32742000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 185mm |
| Rated current In | 630A |
| Min. busbar thickness | 10mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 150mm |
