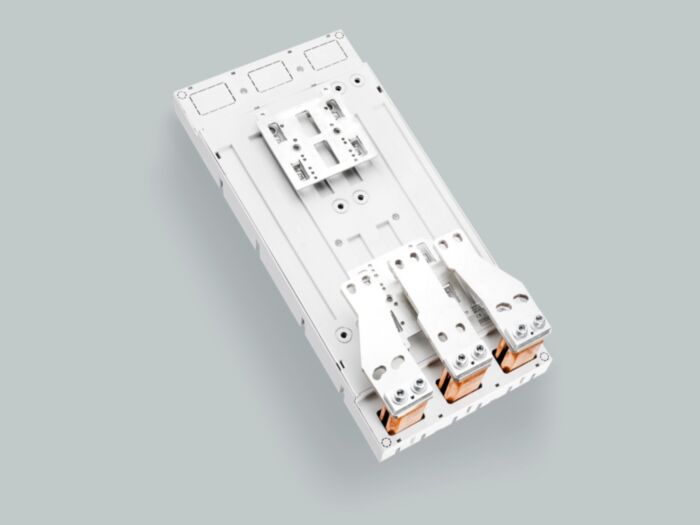

32733 Wohner busbar adapter 1000 A
MPN: 32733
Alt. SKU: 32733000A
Special Price
£1,362.91
£1,135.76
Regular Price
£1,703.63
Why Choose the Busbar Adapter 1000 A (32733)?
The Busbar Adapter 1000 A (Part No. 32733) is designed to provide a reliable and efficient connection solution for Eaton NZM4 circuit breakers rated at 630 A, 800 A, and 1000 A. Its robust construction and compatibility with a wide range of busbar sizes make it an ideal choice for industrial electrical systems requiring high current capacity and secure clamp connections. This adapter is halogen free, ensuring safer operation and environmental compliance.
Key Benefits
- Supports rated current up to 800 A and voltage up to 1000 V AC, suitable for demanding electrical installations.
- Compatible with busbars of multiple sizes (30, 40, 60, 80, 100, 120 x 10 mm), offering flexibility in system design.
- Clamp connection with bottom connection ensures secure and stable electrical contact.
- Halogen free material enhances safety and reduces environmental impact.
- Certified with UL 508 and UL approvals for feeder circuits above 250 V, ensuring compliance with international safety standards.
- Mechanical adapter only; it does not carry current but facilitates safe and efficient busbar connections.
Technical Specifications
- Item number: 32733
- Description: busbar adapter 1000 A
- Rated current: 800 A
- Rated voltage AC: 1000 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 300 x 652 x 76 mm
- Weight: 2400.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: EQ185-A1000-C
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
This adapter supports busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm.
Is this adapter suitable for direct current (DC) applications?
The rated voltage for DC is not specified; it is primarily designed for AC systems up to 1000 V.
Does the busbar adapter carry electrical current?
No, this is a mechanical adapter designed to facilitate connections; it does not carry current itself.
What approvals does this product have?
It holds UL 508 and UL approvals, including for feeder circuits above 250 V, with specific UL files for USA and Canada.
Is the product environmentally friendly?
Yes, it is halogen free, which reduces environmental impact and enhances safety.
| Manufacturer Part Number | 32733 |
|---|---|
| Barcode | 4021267327330 |
| Height | 652mm |
| Width | 300mm |
| Depth | 76mm |
| Alternative Product SKU | 32733000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 185mm |
| Rated current In | 1000A |
| Min. busbar thickness | 10mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 300mm |
