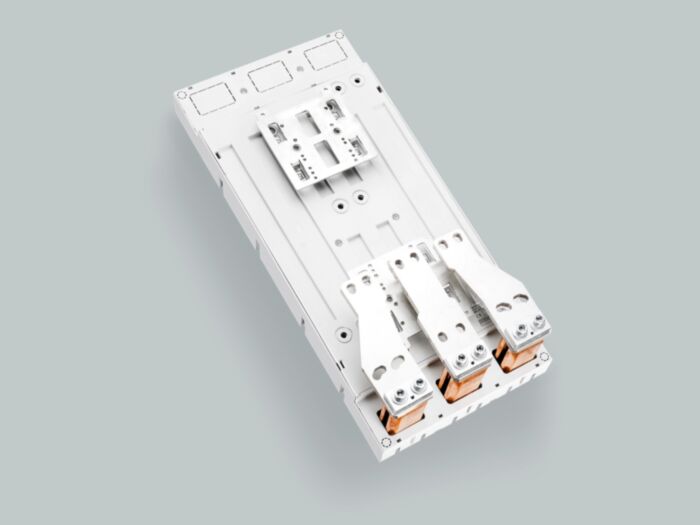

32721 Wohner busbar adapter 1200 A
MPN: 32721
Alt. SKU: 32721000A
Special Price
£1,559.28
£1,299.40
Regular Price
£1,949.09
Why Choose the Busbar Adapter 1200 A (32721)?
The busbar adapter 1200 A (Part No.: 32721 000A) is designed to provide a reliable and efficient connection solution for Schneider Electric Compact NS1250 and ComPacT NS1250 systems. It supports busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm, making it versatile for various electrical installations. This adapter features a screw connection with a bottom connection and changed phase configuration, ensuring secure and stable electrical distribution. Additionally, it is halogen-free, contributing to safer and more environmentally friendly installations.
Key Benefits
- Rated for 1200 A current and 1000 V AC voltage, suitable for demanding electrical systems.
- Compatible with multiple busbar sizes for flexible installation options.
- Halogen-free construction for enhanced safety and environmental compliance.
- UL 508 and UL approvals ensure compliance with North American safety standards.
- Designed specifically for Schneider Electric Compact NS1250 and ComPacT NS1250 circuit breakers.
- Mechanical adapter that does not carry current itself but ensures secure busbar connections.
- Includes comprehensive documentation and CAD models for easy integration and installation.
Technical Specifications
- Item number: 32721
- Description: busbar adapter 1200 A
- Rated current: 1200 A
- Rated voltage AC: 1000 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 300 x 652 x 83 mm
- Weight: 2900.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: UL
- Approval: for UL feeder circuits >250V
- Approval: type number: EQ185-A1600-S
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CCC approval: no certification required
Frequently Asked Questions
Is the busbar adapter suitable for use with CrossLink protection modules?
No, this busbar adapter is not suitable for systems with CrossLink protection modules.
Does the busbar adapter carry current itself?
No, as a mechanical adapter, it does not carry current but provides a secure connection between busbars and circuit breakers.
What busbar sizes are compatible with this adapter?
The adapter supports busbars sized 30, 40, 60, 80, 100, and 120 x 10 mm.
Are there CAD models available for this product?
Yes, 3D PDF and STP CAD models, as well as 2D DXF symbols, are available for download to assist with design and installation.
| Manufacturer Part Number | 32721 |
|---|---|
| Barcode | 4021267327217 |
| Height | 652mm |
| Width | 300mm |
| Depth | 83mm |
| Alternative Product SKU | 32721000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 185mm |
| Rated current In | 1200A |
| Min. busbar thickness | 10mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 300mm |
