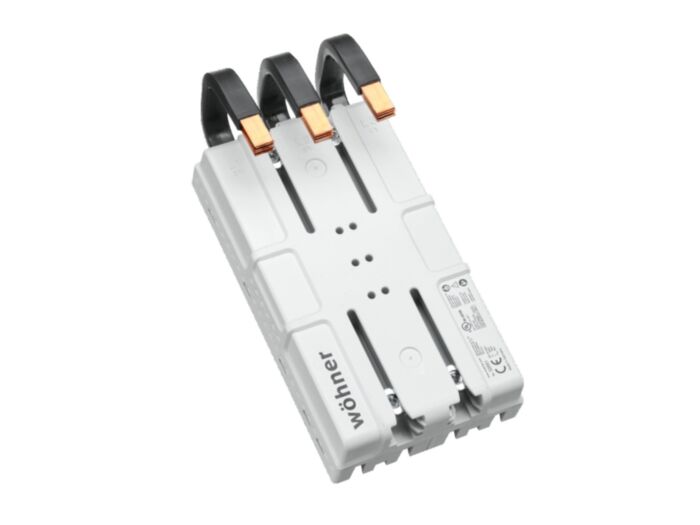

32691000A Woehner 3 pole 160A Adapter
MPN: 32691
Alt. SKU: 32691000A
Special Price
£112.81
£94.01
Regular Price
£141.01
Why Choose the Wöhner 32691 CrossBoard® Adapter?
The Wöhner 32691 is a precision CrossBoard® adapter engineered for the secure and efficient integration of modular switching and protection devices into the CrossBoard® busbar system. It enables rapid installation while ensuring dependable electrical contact and stable mechanical mounting within compact power distribution assemblies.
Designed for industrial panel builders and OEM manufacturers, the 32691 supports reduced wiring effort, optimised panel layouts and scalable system expansion. Its robust construction ensures reliable long-term performance in demanding industrial and commercial environments.
Key Features
- CrossBoard® adapter for modular device integration.
- Provides secure electrical contact with the busbar system.
- Stable mechanical fixing for industrial installations.
- Compact footprint for high-density switchgear panels.
- Supports modular and scalable distribution architecture.
- Suitable for industrial and commercial power assemblies.
Technical Specifications
- Manufacturer: Wöhner
- Model: 32691
- MPN: 32691000A
- Product type: CrossBoard® adapter
- System compatibility: CrossBoard®
- Application: Modular switching and protection devices
- Mounting type: Direct integration onto CrossBoard®
- Compliance: Suitable for IEC and UL assemblies when used within approved systems
- EAN: 4021267326919
Typical Applications
- Mounting miniature circuit breakers and modular protection devices onto CrossBoard®.
- Industrial distribution boards and switchgear systems.
- OEM control cabinets requiring compact and modular busbar solutions.
- Commercial installations using scalable CrossBoard® architecture.
Frequently Asked Questions
What is the Wöhner 32691 used for?
The 32691 is a CrossBoard® adapter used to mount modular switching and protection devices directly onto the busbar system.
Which system is it compatible with?
It is specifically designed for the Wöhner CrossBoard® busbar system.
Does it provide electrical contact with the busbar?
Yes. The adapter ensures secure and reliable electrical connection within the CrossBoard® assembly.
Is it suitable for industrial panel building?
Yes. It is intended for industrial and commercial switchgear assemblies built to IEC and UL standards when used within approved systems.
Can it support system expansion?
Yes. The modular CrossBoard® concept allows straightforward expansion and reconfiguration as distribution requirements evolve.
| Manufacturer Part Number | 32691 |
|---|---|
| Barcode | 4021267326913 |
| Height | 160mm |
| Width | 195mm |
| Depth | 90mm |
| Country of Manufacture | Germany |
| HS Code | 85369095 |
| Alternative Product SKU | 32691000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Range | Crossboard |
| Number of Poles | 3 pole |
| Halogen free | Yes |
| Rated voltage | 690V |
| Rated current | 160A |
| Busbar distance | 60mm |
| Rated current In | 160A |
| Max. rated operation current Ie | 160A |
| Rated voltage AC | 600V |
| Rated surge voltage | 6kV |
| Width of the adaptor | 90mm |
| Rated Frequency | 50Hz/60Hz |
| Rated Isolation Voltage Ui AC | 800V |
| Short-Circuit Current Rating (SCCR) | 42 kA with any DIVQ/7 circuit breaker 125 A / 600 V AC100 kA with any DIVQ/7 circuit breaker 125 A / 480 V AC |
