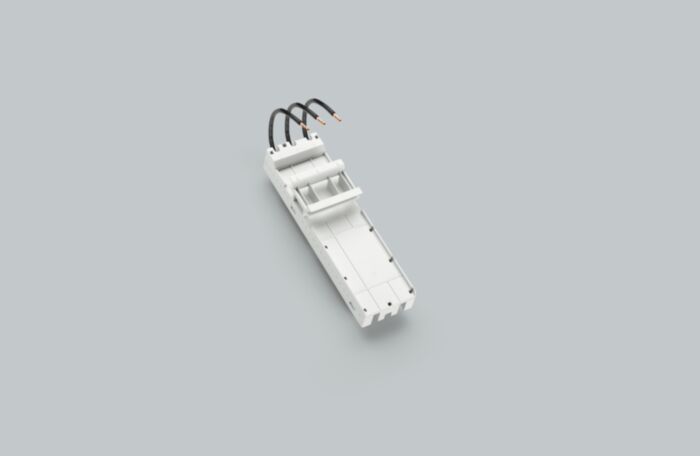

32682 Wohner adapter 32 A

Why Choose the Adapter 32 A (32682)?

The Adapter 32 A (Part No. 32682 000A) is designed for seamless integration with the EQUES CrossBoard® system, supporting CrossBoard® 125A / 250A and CrossBoard® 800 A configurations. Featuring a fixed mounting rail and AWG 10 (6 mm²) leads, this adapter ensures reliable and secure connections. Its ultrasonic compressed conductor ends and intuitive click mechanism facilitate easy and efficient installation onto the CrossBoard® interface. Additionally, the adapter is halogen free and carries multiple UL approvals, guaranteeing safety and compliance for industrial applications.

Key Benefits

• Compatible with CrossBoard® systems up to 800 A
• Fixed mounting rail with AWG 10 leads for robust electrical connections
• Ultrasonic compressed conductor ends for enhanced conductivity and durability
• Click mechanism enables quick and secure attachment to CrossBoard®
• Halogen free construction supports environmentally responsible installations
• UL 508 certified, suitable for UL feeder circuits above 250 V
• Multiple UL files and categories for USA and Canada ensure broad regulatory acceptance
• Mechanical adapter does not carry current itself but facilitates safe current transfer

Technical Specifications

• Item number: 32682
• Description: adapter 32 A
• Rated current: 30 A
• Rated voltage AC: 600 V
• Rated frequency: 50 / 60 Hz
• Dimensions (W x H x D): 45 x 160 x 45 mm
• Weight: 14.0 kg/100
• Halogen free: Yes
• Approval: UL 508
• Approval: for UL feeder circuits >250V
• Approval: type number: EQ45-AC
• Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
• Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
• Approval: CCC approval: no certification required
