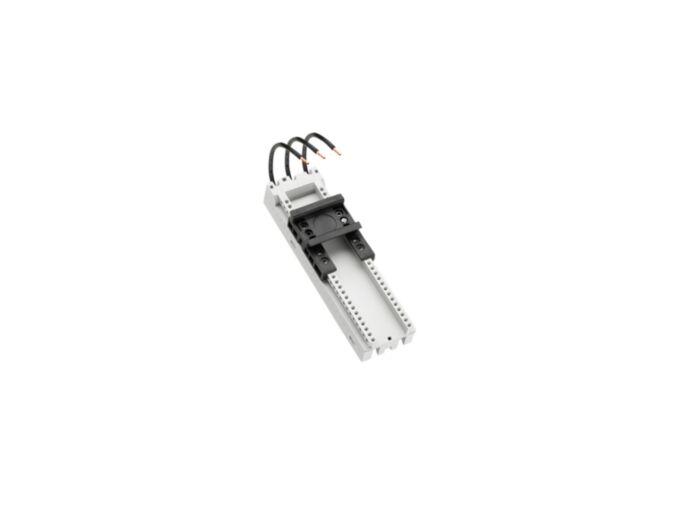

32669000A Woehner 3 pole 16A Adapter
MPN: 32669
Alt. SKU: 32669000A
Special Price
£18.13
£15.11
Regular Price
£22.67
Why Choose the Wöhner 32669 CrossBoard® Adapter?
The Wöhner 32669 is a precision CrossBoard® adapter designed for the direct integration of modular switching and protection devices into the CrossBoard® busbar system. It enables fast, secure installation while ensuring reliable electrical contact and stable mechanical mounting within compact power distribution assemblies.
Engineered for industrial panel builders and OEM manufacturers, the 32669 supports streamlined assembly, reduced wiring effort and scalable system expansion. Its robust construction ensures dependable performance in demanding industrial and commercial environments.
Key Features
- CrossBoard® adapter for modular device integration.
- Provides secure electrical contact with the busbar system.
- Stable mechanical fixing for industrial installations.
- Compact footprint for high-density switchgear panels.
- Supports modular and scalable distribution architecture.
- Suitable for industrial and commercial power assemblies.
Technical Specifications
- Manufacturer: Wöhner
- Model: 32669
- MPN: 32669000A
- Product type: CrossBoard® adapter
- System compatibility: CrossBoard®
- Application: Modular switching and protection devices
- Mounting type: Direct integration onto CrossBoard®
- Compliance: Suitable for IEC and UL assemblies when used within approved systems
- EAN: 4021267326698
Typical Applications
- Mounting miniature circuit breakers and modular protection devices onto CrossBoard®.
- Industrial distribution boards and switchgear assemblies.
- OEM control cabinets requiring compact busbar systems.
- Commercial installations using scalable CrossBoard® architecture.
Frequently Asked Questions
What is the Wöhner 32669 used for?
The 32669 is a CrossBoard® adapter used to mount modular switching and protection devices directly onto the busbar system.
Which system is it compatible with?
It is specifically designed for the Wöhner CrossBoard® busbar system.
Does it provide electrical contact with the busbar?
Yes. The adapter ensures secure and reliable electrical connection within the CrossBoard® assembly.
Is it suitable for industrial panel building?
Yes. It is intended for industrial and commercial switchgear assemblies built to IEC and UL standards when used within approved systems.
Can it support system expansion?
Yes. The modular CrossBoard® concept allows straightforward expansion and reconfiguration as distribution requirements evolve.
| Manufacturer Part Number | 32669 |
|---|---|
| Barcode | 4021267326692 |
| Height | 16mm |
| Width | 185mm |
| Depth | 50mm |
| Country of Manufacture | Germany |
| HS Code | 85369095 |
| Alternative Product SKU | 32669000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Range | Crossboard |
| Number of Poles | 3 pole |
| Halogen free | Yes |
| Rated voltage | 690V |
| Rated current | 16A |
| Busbar distance | 60mm |
| Mounting rail armament | 1 mounting rail |
| Rated current In | 16A |
| Max. rated operation current Ie | 16A |
| Rated voltage AC | 600V |
| Rated surge voltage | 6kV |
| Width of the adaptor | 45mm |
| Rated Frequency | 50Hz/60Hz |
| Rated Isolation Voltage Ui AC | 800V |
| Short-Circuit Current Rating (SCCR) | 65 kA with any NKJH/7 Comb. Motor Controller 12 A / 480 V AC50 kA with JDDZ fuse Class CC 20 A / 600 V AC |
