32663 Wohner busbar adapter 80 A
MPN: 32663
Alt. SKU: 32663000A
Special Price
£68.87
£57.39
Regular Price
£86.08

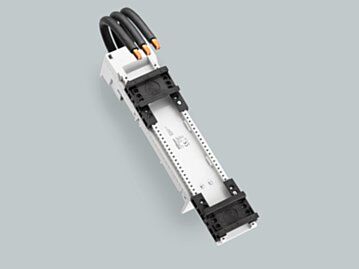

Busbar Adapter 80 A (32663)
The busbar adapter 80 A (Part No.: 32663 000A) is designed for use with direct starters Siemens Sirius frame size S2. It features a 3-pole configuration and measures 54 x 260 x 63 mm. This adapter is halogen free and approved under UL 508 and CSA standards, making it a reliable choice for industrial electrical applications.
Why Choose the Busbar Adapter 80 A?
- Specifically designed for Siemens Sirius direct starters, ensuring compatibility and ease of installation.
- Ultrasonically sealed conductor ends for enhanced durability and reliable electrical contact.
- Click mechanism allows secure and straightforward mounting onto busbars.
- Supports busbars of various sizes including 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
- Halogen free material contributes to safer and environmentally friendly installations.
- Complies with UL and CSA approvals, meeting stringent safety and quality standards.
Key Benefits
- Reliable connection for current up to 80 A at 600 V AC, suitable for 50/60 Hz systems.
- Mechanical adapter that does not carry current itself but facilitates secure busbar connections.
- Compact dimensions (54 x 260 x 63 mm) save space in electrical panels.
- Lightweight design (59.1 kg/100) for ease of handling and installation.
- Multiple downloadable resources available including CAD models, mounting instructions, and conformity declarations.
Technical Specifications
- Item number: 32663
- Description: busbar adapter 80 A
- Rated current: 80 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 54 x 260 x 63 mm
- Weight: 59.1 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC60100-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
Does the busbar adapter carry current directly?
No, the busbar adapter is a mechanical component designed to connect busbars and does not carry current itself.
What busbar sizes are compatible with this adapter?
This adapter supports busbars sized 12, 15, 20, 25, 30 x 5, 10 mm as well as section busbars.
Is the busbar adapter suitable for outdoor installations?
The product description does not specify outdoor suitability. Please consult technical documentation or contact support for environmental ratings.
Where can I find mounting instructions and CAD models?
Mounting instructions and CAD models in various formats are available for download from the product page and linked resources.
| Manufacturer Part Number | 32663 |
|---|---|
| Barcode | 4021267326630 |
| Height | 260mm |
| Width | 54mm |
| Depth | 63mm |
| Alternative Product SKU | 32663000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 60mm |
| Mounting rail armament | 2 mounting rails |
| Rated current In | 80A |
| Min. busbar thickness | 5mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 54mm |
