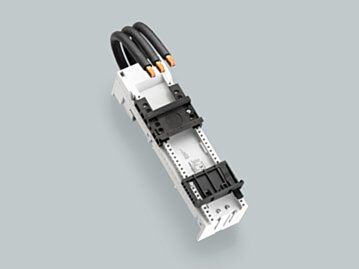

32662 Wohner busbar adapter 80 A
MPN: 32662
Alt. SKU: 32662000A
Special Price
£68.87
£57.39
Regular Price
£86.08
Why Choose the Busbar Adapter 80 A (32662)?
The busbar adapter 80 A (Part No.: 32662 000A) is designed for seamless integration with Siemens Sirius circuit breakers, frame size S2. Its robust construction and ultrasonic sealing of conductor ends ensure reliable and secure connections. The click mechanism facilitates quick and easy installation onto busbars, enhancing efficiency in electrical system setups. Compatible with various busbar sizes, this adapter supports a wide range of applications within the 60Classic system.
Key Benefits
- Supports rated current of 80 A and voltage up to 600 V AC, suitable for demanding electrical environments.
- Ultrasonically sealed conductor ends provide enhanced durability and electrical integrity.
- Click mechanism enables fast, tool-free attachment to busbars, reducing installation time.
- Compatible with multiple busbar dimensions: 12, 15, 20, 25, 30 x 5, 10 mm and section busbars.
- Halogen-free materials contribute to safer and environmentally friendly installations.
- Comprehensive approvals including UL 508 and CSA ensure compliance with international safety standards.
- Mechanical product that does not carry current directly but facilitates secure electrical connections.
Technical Specifications
- Item number: 32662
- Description: busbar adapter 80 A
- Rated current: 80 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 54 x 200 x 63 mm
- Weight: 52.1 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC60100-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What busbar sizes are compatible with this adapter?
The busbar adapter supports busbars sized 12, 15, 20, 25, 30 x 5 mm, 10 mm, and section busbars, providing versatile installation options.
Is this adapter suitable for direct current applications?
This adapter is rated for AC voltage up to 600 V and frequency 50/60 Hz. It is primarily designed for AC systems and does not specify DC voltage ratings.
Does the busbar adapter carry current directly?
No, as a mechanical component, the busbar adapter itself does not carry current but facilitates secure electrical connections between busbars and circuit breakers.
What approvals does this product have?
The adapter holds multiple approvals including UL 508, CSA, and is certified for UL feeder circuits above 250 V, ensuring compliance with stringent safety standards.
Are there installation instructions available?
Yes, detailed mounting instructions and technical documentation are available for download to assist with proper installation.
| Manufacturer Part Number | 32662 |
|---|---|
| Barcode | 4021267326623 |
| Height | 200mm |
| Width | 54mm |
| Depth | 63mm |
| Alternative Product SKU | 32662000A |
| Manufacturer | Wohner |
| Packed Quantity | 1 |
| Busbar distance | 60mm |
| Mounting rail armament | 1 mounting rail |
| Rated current In | 80A |
| Min. busbar thickness | 5mm |
| Max. busbar thickness | 10mm |
| Width of the adaptor | 54mm |
