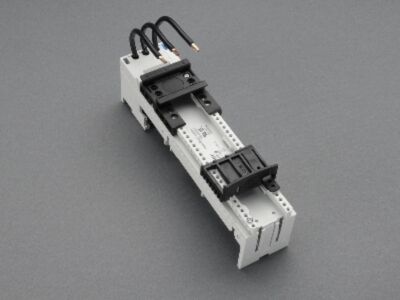

32650 Wohner busbar adapter 25 A
MPN: 32650
Alt. SKU: 32650000
Special Price
£43.81
£36.51
Regular Price
£54.77
Why Choose the Clamp Busbar Adapter 25 A (32650)?
The Clamp Busbar Adapter 25 A (Part No. 32650) is designed for reliable and efficient electrical connections in industrial applications. It is specifically made for direct starters Siemens S00 with spring terminal connections, ensuring compatibility and ease of installation. Its halogen-free construction supports environmentally responsible projects, while the extra-long leads facilitate secure Cage-Clamp connections. This adapter is suitable for various busbar sizes, providing versatile integration within your electrical system.
Key Benefits
- Rated for 25 A current and 600 V AC voltage, suitable for demanding electrical environments.
- Compatible with busbars of multiple dimensions (12, 15, 20, 25, 30 x 5, 10 mm) and section busbars.
- Ultrasonically sealed cable ends ensure high-quality, durable connections.
- Secure locking mechanism for easy and reliable mounting on busbars.
- Halogen-free material enhances safety and environmental compliance.
- Comprehensive approvals including UL 508, CSA, and DNV GL for assured quality and safety standards.
- Includes 165 mm long AWG 12 (4 mm²) leads for flexible wiring options.
- Mechanical product that does not carry current itself but facilitates safe current transfer.
Technical Specifications
- Item number: 32650
- Description: busbar adapter 25 A
- Rated current: 25 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 45 x 200 x 63 mm
- Weight: 33.0 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6025-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What is the primary use of the Clamp Busbar Adapter 25 A?
This adapter is used to connect busbars to direct starters, specifically Siemens S00 models with spring terminal connections, ensuring secure and reliable electrical connections.
Is this product suitable for high current applications?
The busbar adapter is rated for 25 A current and supports voltages up to 600 V AC, making it suitable for moderate current industrial applications.
Does the busbar adapter carry current itself?
No, as a mechanical adapter, it does not carry current itself but facilitates the safe transfer of current between components.
Are there any environmental considerations with this product?
Yes, the adapter is halogen-free, supporting safer and more environmentally friendly installations.
Where can I find technical documentation and CAD models?
Technical information, mounting instructions, and CAD models in various formats are available through the manufacturer's download links.
| Manufacturer Part Number | 32650 |
|---|---|
| Barcode | 4021267326500 |
| Height | 200mm |
| Width | 45mm |
| Depth | 63mm |
| Alternative Product SKU | 32650000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
