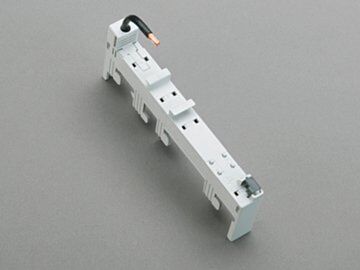

32629 Wohner busbar adapter 1-pole, 32 A
MPN: 32629
Alt. SKU: 32629000
Special Price
£8.66
£7.22
Regular Price
£10.84
Why Choose the 1-Pole 32 A Busbar Adapter 32629?
The 32629 busbar adapter is designed for compact 30Compact 5P systems, providing a secure interface for mounting protective and switching devices onto 12 × 5 mm busbars. Rated up to 32 A, this 1-pole adapter ensures safe and reliable integration within modern distribution boards.
Featuring a fixed mounting rail and precision-moulded housing, it enables fast installation while maintaining accurate alignment and mechanical stability. Its halogen-free construction supports improved fire safety standards in commercial and industrial panels.
Key Features
- Rated current: up to 32 A.
- 1-pole design for single-phase applications.
- Compatible with 12 × 5 mm busbars.
- Designed for 30Compact 5P systems.
- Fixed mounting rail for secure and stable installation.
- Compact footprint: 18 × 160 × 82 mm.
- Halogen-free housing for enhanced fire safety compliance.
- CCC: no certification required.
Technical Specifications
- SKU: 32629
- Product Type: Busbar adapter
- Poles: 1P
- Maximum Rated Current: 32 A
- System: 30Compact 5P
- Busbar Size: 12 × 5 mm
- Dimensions (W × H × D): 18 × 160 × 82 mm
- Weight: 6.0 kg per 100 units
- Material: Halogen-free insulating housing
Frequently Asked Questions
Does the 32629 adapter carry electrical current?
The adapter provides the electrical interface between the device and busbar system. It is designed for secure mounting and safe current transfer up to 32 A within the specified system.
Which busbar size is required?
It is specifically designed for 12 × 5 mm copper busbars within the 30Compact 5P system.
Is it suitable for single-phase applications?
Yes. The 1-pole configuration makes it suitable for single-phase circuits up to 32 A.
Is the housing halogen free?
Yes. The insulating material is halogen free, supporting improved fire safety performance.
Does the product require CCC certification?
No. CCC certification is not required for this product.
| Manufacturer Part Number | 32629 |
|---|---|
| Barcode | 4021267326296 |
| Height | 160mm |
| Width | 18mm |
| Depth | 82mm |
| Alternative Product SKU | 32629000 |
| Manufacturer | Wohner |
| Packed Quantity | 12 |
