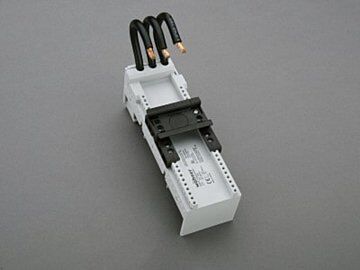

32591 Wohner busbar adapter 63 A
MPN: 32591
Alt. SKU: 32591000
Special Price
£32.17
£26.81
Regular Price
£40.21
Why Choose the Busbar Adapter 63 A (32591)?
The busbar adapter 63 A (part number 32591) is designed for reliable and efficient electrical connections within the 30Compact 3P system. It features an adjustable mounting rail and is compatible with busbars of sizes 12 x 5 and 10 mm. This adapter is halogen-free, ensuring safer use in various industrial environments. Its conductor ends are ultrasonically sealed, providing enhanced durability and performance. The click mechanism guarantees secure attachment when pushed onto the busbar, simplifying installation and maintenance.
Key Benefits
- Supports a rated current of 65 A and rated voltage up to 600 V AC, suitable for demanding electrical applications.
- Compatible with busbars sized 12 x 5 and 10 mm, offering flexibility in system design.
- Ultrasonically sealed conductor ends ensure long-lasting and reliable electrical connections.
- Click mechanism facilitates quick and secure mounting onto busbars, reducing installation time.
- Halogen-free construction enhances safety and environmental compliance.
- Comprehensive approvals including UL 508, CSA, and DNV GL certify the product's quality and safety standards.
- Adjustable mounting rail allows for versatile installation options.
Technical Specifications
- Item number: 32591
- Description: busbar adapter 63 A
- Rated current: 65 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 54 x 160 x 63 mm
- Weight: 21.8 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6063C-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What is the primary function of the busbar adapter 63 A?
The busbar adapter 63 A is designed to provide a secure and reliable connection between busbars and electrical components within the 30Compact 3P system.
Is this adapter suitable for carrying current?
Yes, this electrical busbar adapter is rated for a current of 65 A and is designed to carry electrical current safely.
What busbar sizes is this adapter compatible with?
It is compatible with busbars sized 12 x 5 mm and 10 mm.
Does the busbar adapter contain halogens?
No, the busbar adapter is halogen-free, making it safer for use in various environments.
Are there any certifications for this product?
Yes, it holds multiple approvals including UL 508, CSA, UL, and DNV GL certifications.
What mounting options are available?
The adapter includes one adjustable mounting rail for flexible installation.
| Manufacturer Part Number | 32591 |
|---|---|
| Barcode | 4021267325916 |
| Height | 160mm |
| Width | 54mm |
| Depth | 63mm |
| Alternative Product SKU | 32591000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
