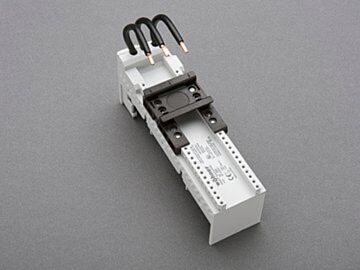

32590 Wohner busbar adapter 32 A
MPN: 32590
Alt. SKU: 32590000
Special Price
£28.74
£23.95
Regular Price
£35.93
Why Choose the Busbar Adapter 32 A (32590)?
The busbar adapter 32 A (part number 32590) is designed for reliable and efficient electrical connections within the EQUES 30Compact system. Featuring an adjustable mounting rail and compatibility with busbars sized 12 x 5 and 10 mm, this adapter ensures a secure fit and ease of installation. Its conductor ends are ultrasonically sealed, providing enhanced durability and safety. The click mechanism allows for quick and secure attachment to the busbar, reducing installation time and improving system integrity.
Key Benefits
- Rated for 25 A current and 600 V AC voltage, suitable for a wide range of applications.
- Ultrasonically sealed conductor ends for long-lasting performance and safety.
- Click mechanism enables fast and secure mounting onto busbars.
- Adjustable mounting rail for flexible installation options.
- Halogen-free construction supports environmentally responsible installations.
- Complies with multiple international approvals including UL 508, CSA, and DNV GL.
- Compatible with the 30Compact 3P system, ensuring seamless integration.
- Mechanical product that does not carry current directly but facilitates secure electrical connections.
Technical Specifications
- Item number: 32590
- Description: busbar adapter 32 A
- Rated current: 25 A
- Rated voltage AC: 600 V
- Rated frequency: 50 / 60 Hz
- Dimensions (W x H x D): 45 x 160 x 63 mm
- Weight: 19.8 kg/100
- Halogen free: Yes
- Approval: UL 508
- Approval: CSA , UL , DNV GL
- Approval: for UL feeder circuits >250V
- Approval: type number: EEC6025C-L
- Approval: UL file: E123577, UL category (for USA): NMTR https://www.ul.com
- Approval: UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
- Approval: CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
- Approval: CCC approval: no certification required
Frequently Asked Questions
What is the purpose of the busbar adapter 32 A (32590)?
This adapter is used to securely connect and adapt busbars within the EQUES 30Compact system, facilitating safe and efficient electrical distribution.
Is the busbar adapter 32 A suitable for high current applications?
The adapter is rated for a maximum current of 25 A and a voltage of 600 V AC, making it suitable for moderate current applications within its specified limits.
Does the busbar adapter carry current directly?
No, as a mechanical adapter, it does not carry current itself but provides a reliable connection point for busbars that conduct current.
What approvals does this product have?
The adapter holds multiple approvals including UL 508, CSA, and DNV GL, ensuring compliance with international safety standards.
Is the busbar adapter environmentally friendly?
Yes, it is halogen-free, supporting environmentally responsible electrical installations.
| Manufacturer Part Number | 32590 |
|---|---|
| Barcode | 4021267325909 |
| Height | 160mm |
| Width | 45mm |
| Depth | 63mm |
| Alternative Product SKU | 32590000 |
| Manufacturer | Wohner |
| Packed Quantity | 4 |
